Dental Implant Instruments and Surgery Kits

Use the Implant Workflow to Find the Correct Collection

Implant instrument kits are not one interchangeable product family. Drill kits prepare an osteotomy, and positioning kits help mark and space the sites before drilling. Expanders and osteotomes address ridge width and bone preparation, sinus kits lift the membrane, and graft instruments collect, process and deliver bone. Tacks fix a membrane, trephines cut round cores, PRF kits handle fibrin clots, and microsurgery sets handle suture and fine tissue. An abutment holder grips a prosthetic component outside the mouth.

Choose the workflow stage first, then compare the exact kit. This prevents a broad implant surgery kit request from mixing components that may not connect to the same system. Use the complete component schedule and replacement references to build the order.

• Drilling and osteotomy — An eight-drill surgical kit (2.0 to 5.2 mm) and conical drill and stopper kits from 25 to 55 pieces. Compare diameters, lengths, depth control, shanks and the case.

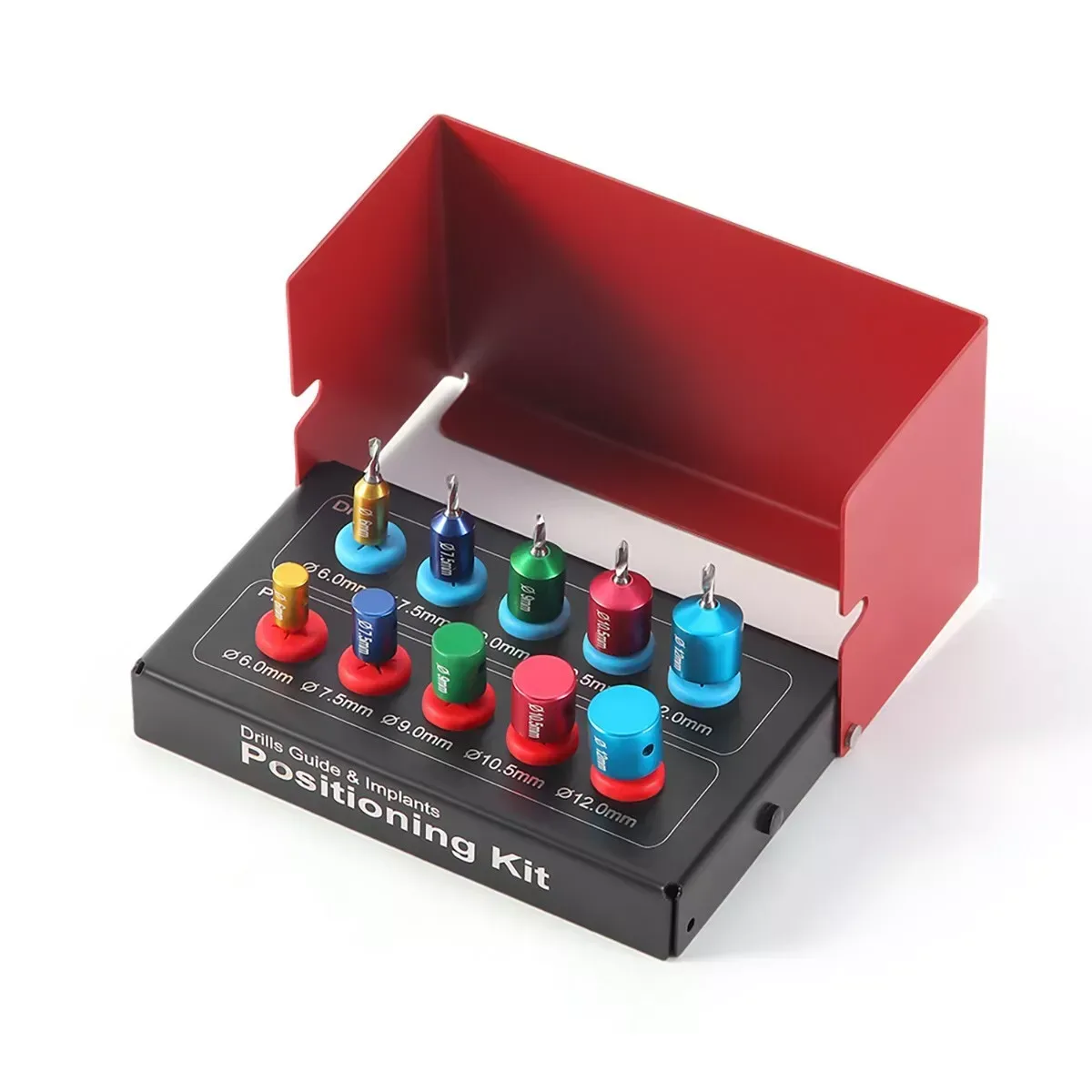

• Guide positioning — A 2.0 mm pilot drill with positioning guides from 6.0 to 12.0 mm. A positioning kit is not a complete guided-surgery system.
• Bone, sinus and graft work — Bone expanders, osteotomes and chisels; sinus lift instruments; graft collection, processing and delivery tools; GBR tacks; PRF handling.
• Cores, soft tissue and abutments — Trephine, tissue-punch and saw-disc kits; microsurgery and soft-brushing sets; the abutment preparation holder.

• Compare implant drill kits
• See guided implant surgery and positioning kits
• Compare bone-expander and osteotome configurations
• Compare bone collectors and GBR fixation kits
• Compare implant and periodontal microsurgery kits
• Compare implant prosthetic instruments

Compatibility Must Be Confirmed at Kit or Component Level

A matching diameter does not prove that a drill fits an implant system, guided sleeve, handpiece, or driver. Compatibility may depend on shank, cutting geometry, connection, platform, guide or sleeve dimensions, driver interface, and working length. Universal can describe a broad commercial configuration, but it must never be read as compatible with every system.

Send the implant or guide system, connection, sleeve dimensions, required drill or driver interface, platform, diameter and length schedule, and any existing component references. We will confirm the available configuration before pricing. If compatibility cannot be verified, the quotation should say what still needs confirmation rather than imply a fit.

Compare What Each Listed Kit Actually Contains

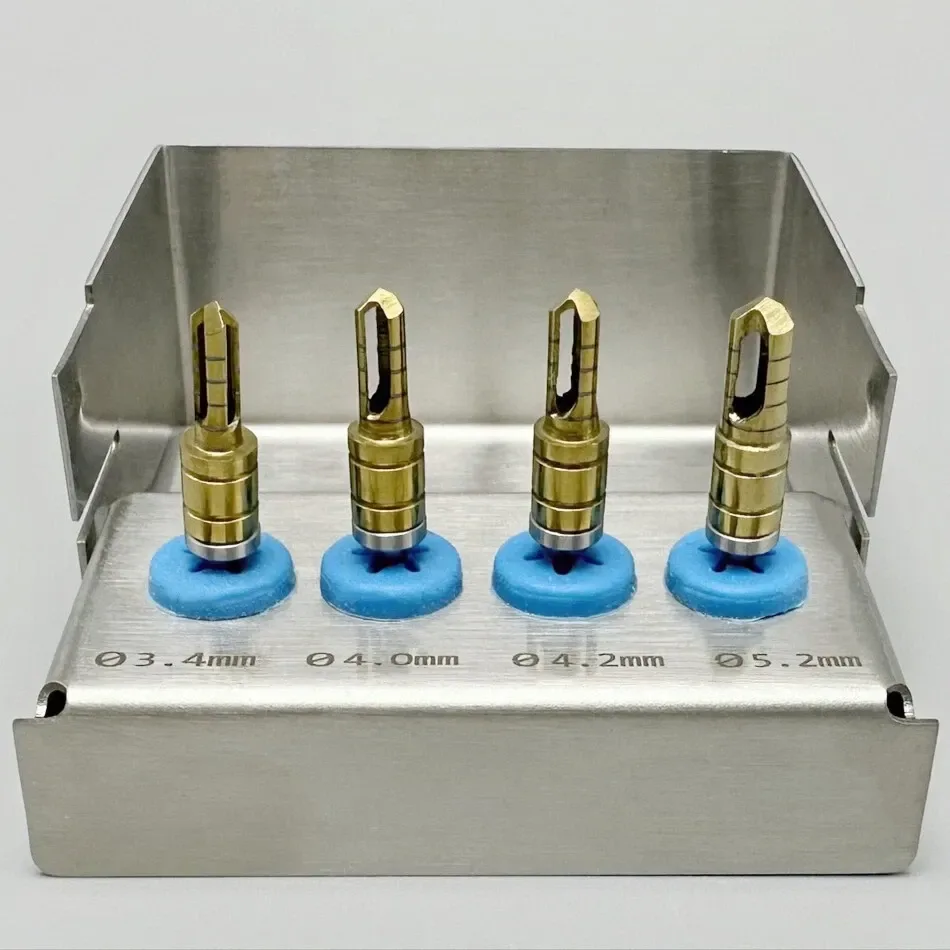

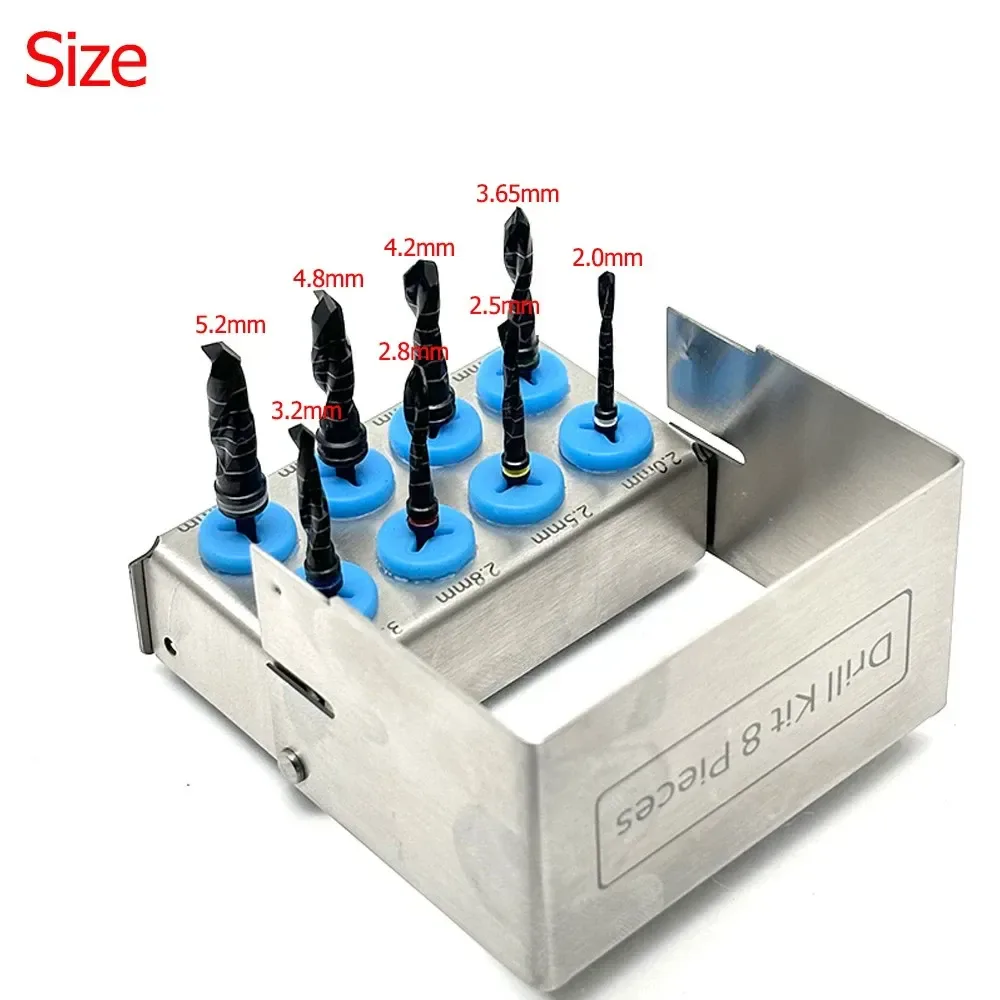

The surgical drill kit lists eight depth-marked drills from 2.0 to 5.2 mm, and its metal holder is not counted among the eight. The bone collector set follows the same logic: four drills marked 3.4, 4.0, 4.2 and 5.2 mm, with the hinged metal holder in addition. Conical drill and stopper kits come in sizes from 25 to 55 pieces, and each quotation itemises the drills and the stoppers, so a piece count is not a drill count.

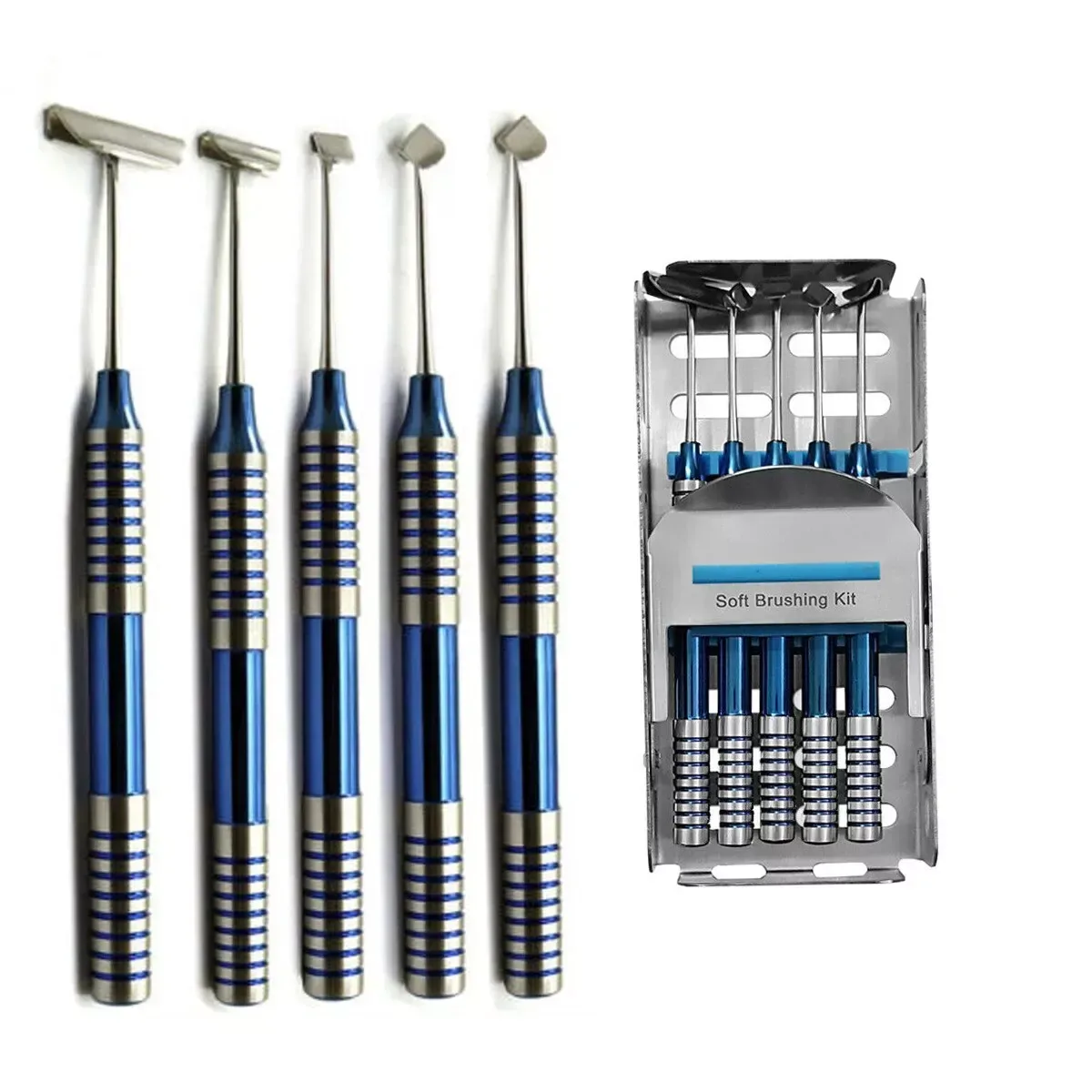

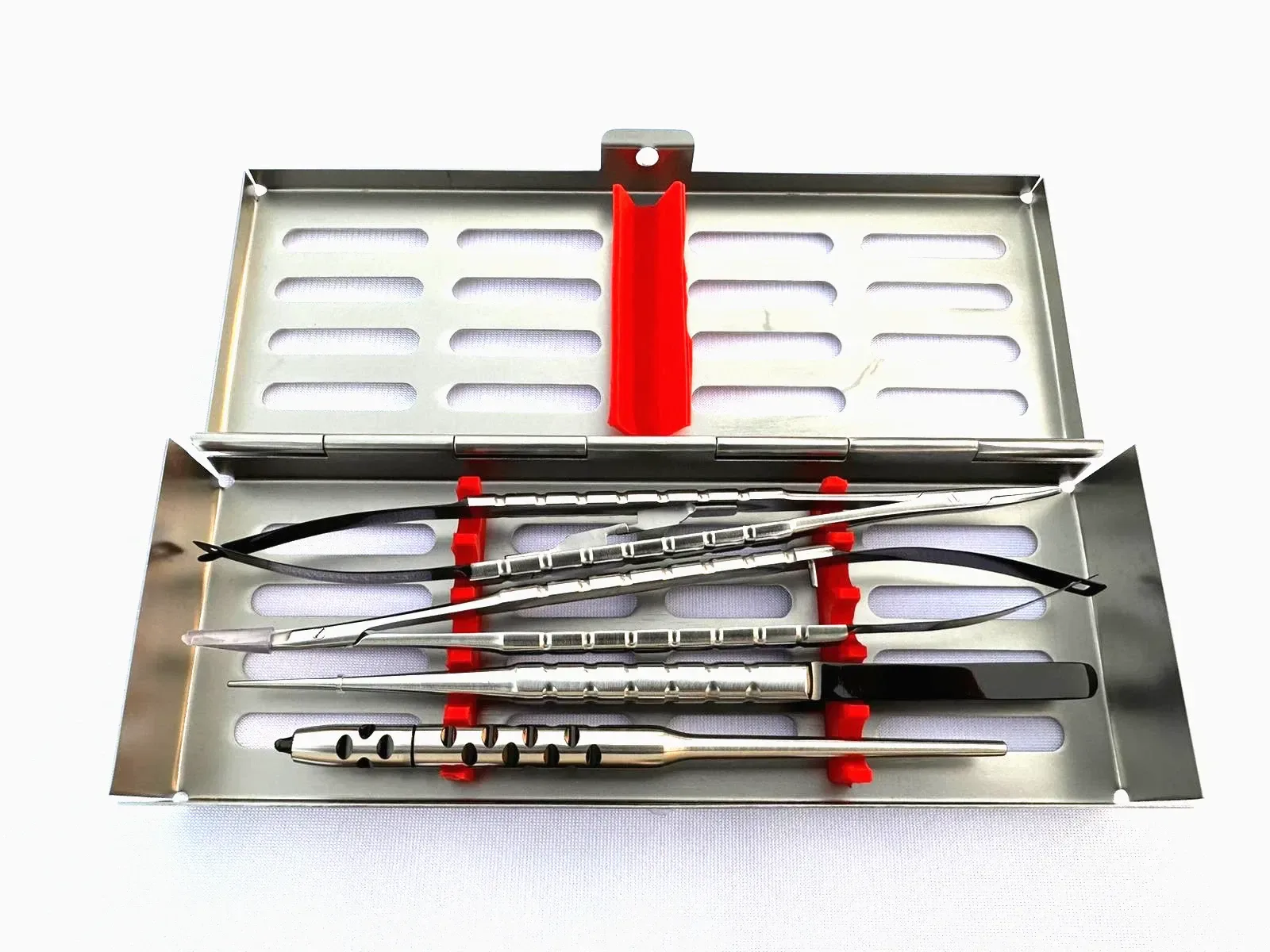

The soft-brushing kit is five manual instruments (large, medium, and angulated straight, left and right) with a separate five-position cassette. The microsurgery set is four instruments in a metal cassette, without blades, needles or sutures. The offset concave osteotome set is five instruments, and the chisel and mallet set is nine: eight chisels at 4, 5, 6 and 7 mm, one straight and one curved at each width, plus a mallet. Check whether a holder, cassette or box is counted before you compare totals.

• See the surgical drill schedule
• Review the five soft-brushing positions
• Compare bone-expander and osteotome configurations

Compare Expansion, Sinus and Trephine Options

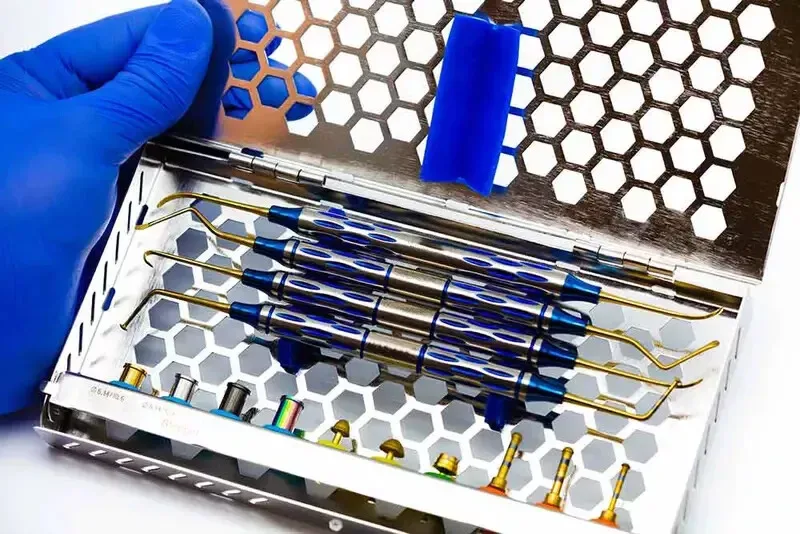

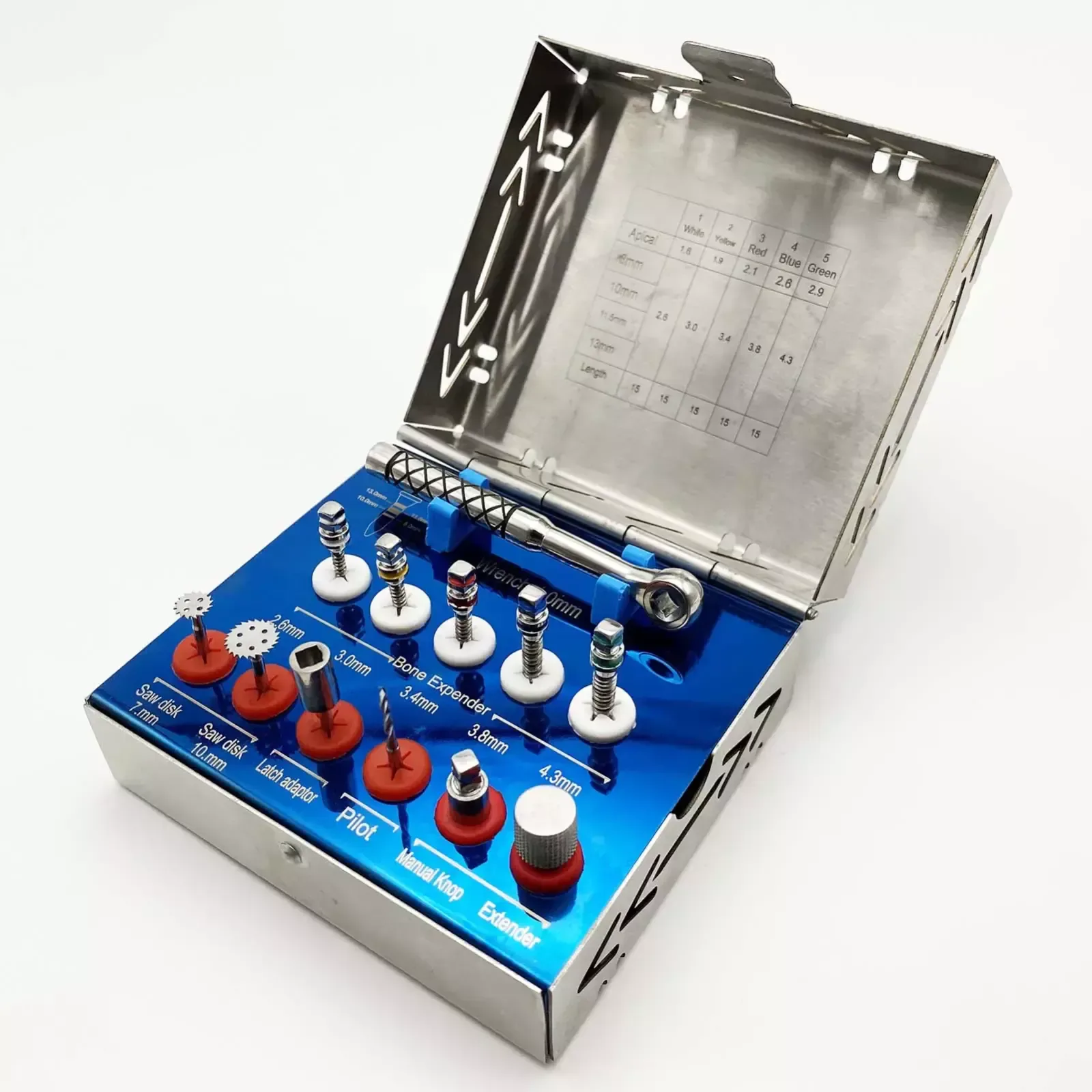

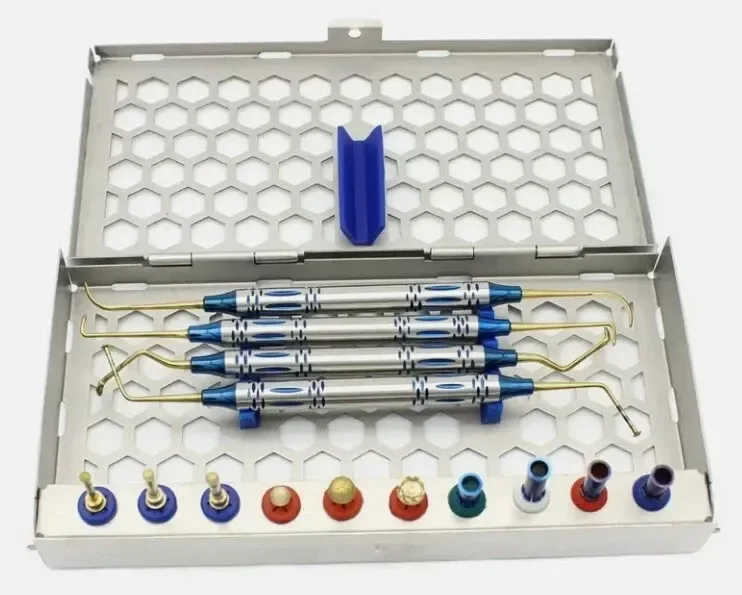

Bone expander kits use five screw-type expanders from 2.6 to 4.3 mm with 7 and 10 mm saw discs, in ratchet, 12-piece and 17-piece options. Sinus lift kits come as blue-grip hand instruments, crestal drills with depth stoppers and diamond-coated lateral burs, and the mushroom set is five double-ended hand instruments with a matching cassette. Each lists different tools, so compare the component groups rather than the piece count.

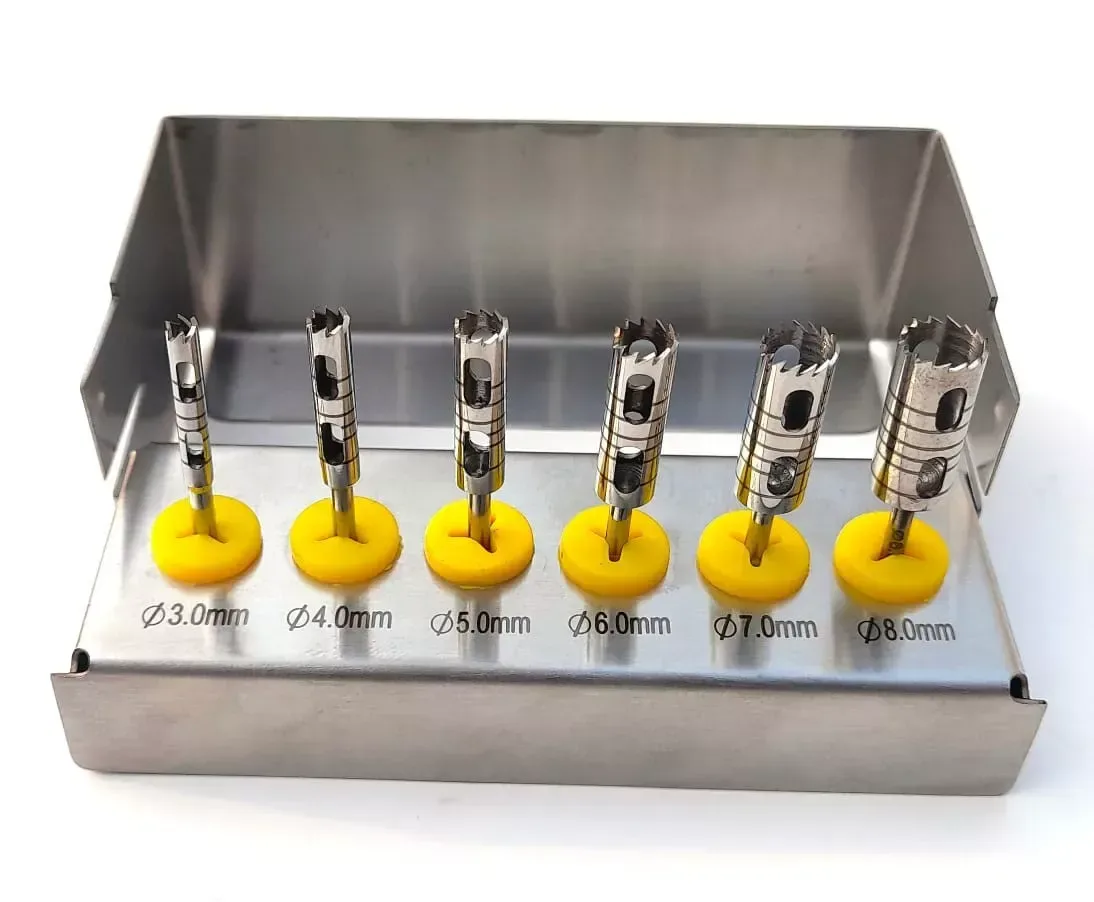

Trephines are hollow cutting drills, and a nominal size label does not tell you inside diameter, outside diameter, usable length or shank. Compare those values for the exact kit and match them against the instrument you already use. Trephine kits are listed in more than one configuration, and the contents of each are confirmed in your quotation.

• Compare trephine, punch, disc and marking schedules
• Review sinus-kit counts and tool groups

Separate Collection, Fixation and PRF Handling

Graft handling is several different jobs. The bone collector drills, the curved scraper, the manual rotary bone mill and the bone-crushing pliers each collect or process bone in a different way, and the curved graft syringe set delivers material to the site. The syringe set does not include graft material, and the tack kits include neither membranes nor graft material.

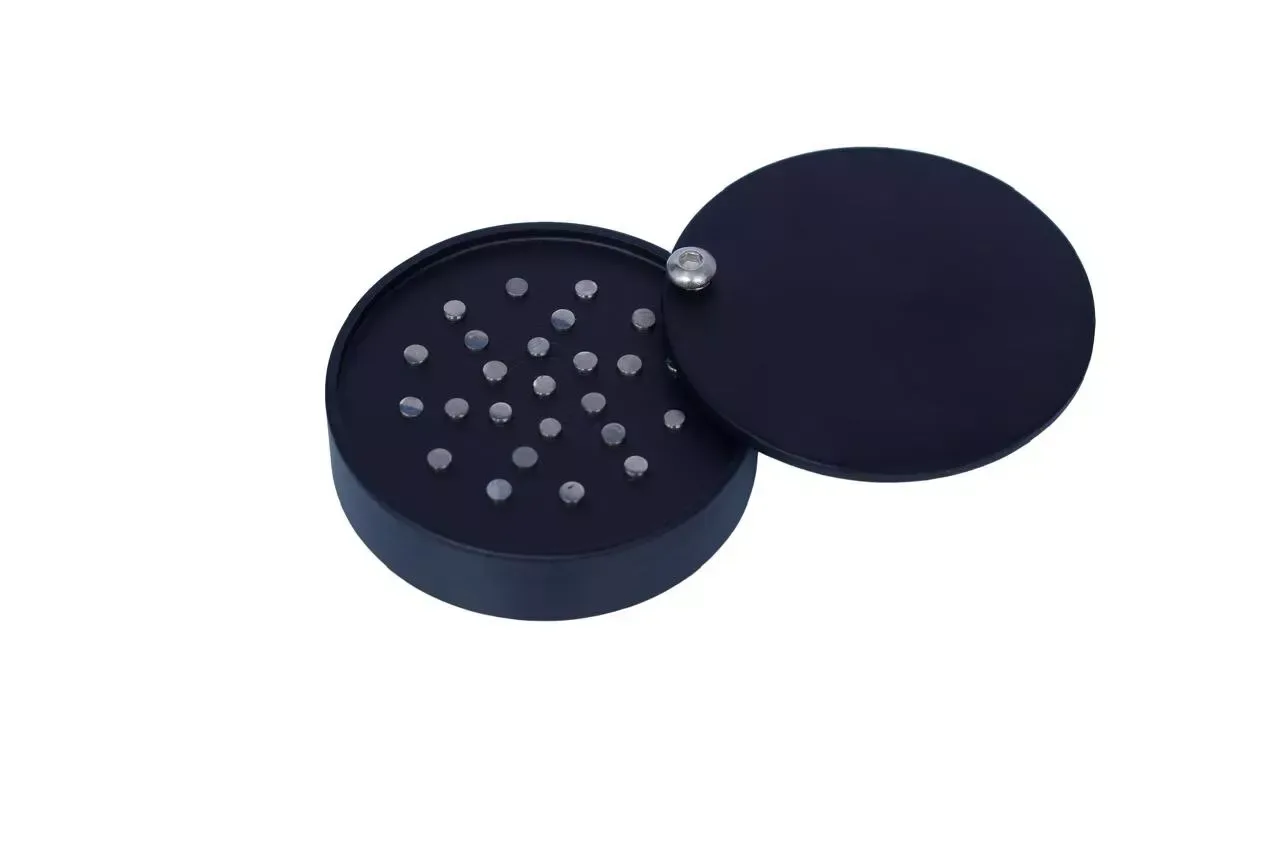

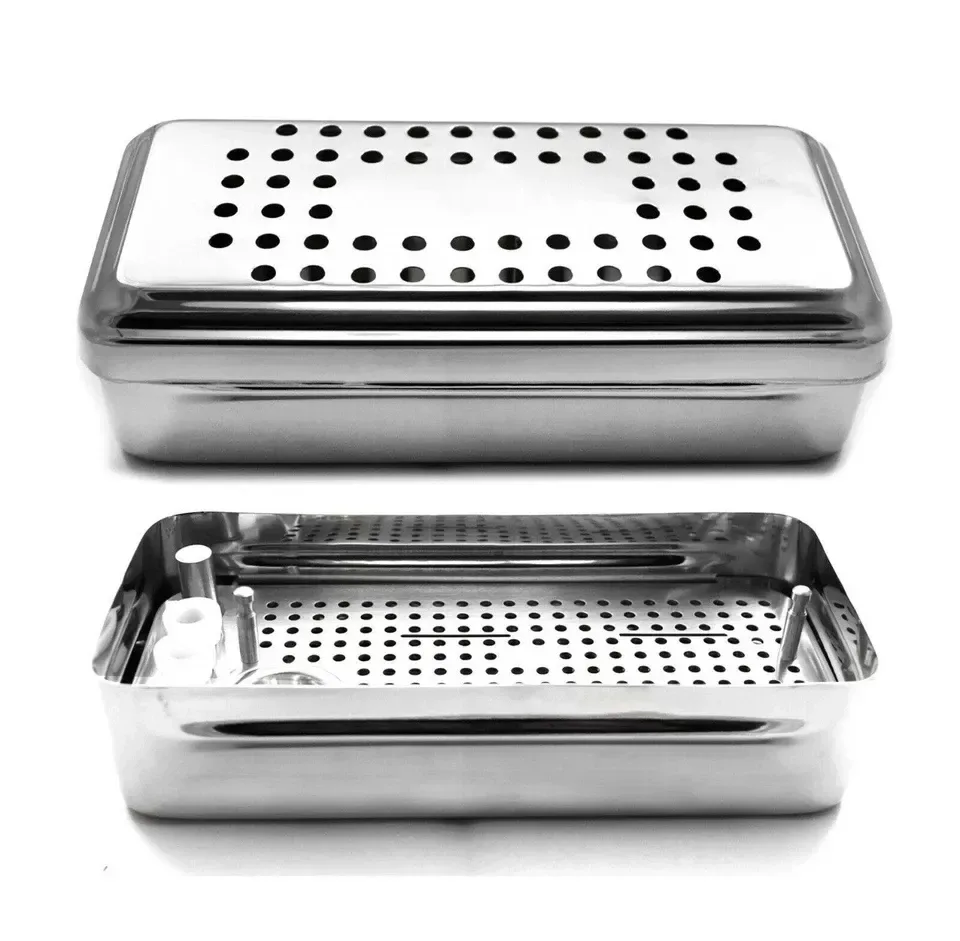

GBR tack kits pair titanium tacks in 2.5 and 3.5 mm with a stainless steel placement handle, and the number of tacks of each size is confirmed in your quotation. PRF boxes and kits handle fibrin clots once they have been prepared; a centrifuge and blood-collection tubes are not included.

For a mixed requirement, send the exact instruments and quantities you need rather than a piece count, and keep guided components, restoration components and microsurgery sets as separate lines.

• Compare bone collectors and GBR fixation kits
• Inspect PRF box and instrument-kit options

Abutment Preparation Is a Separate Task

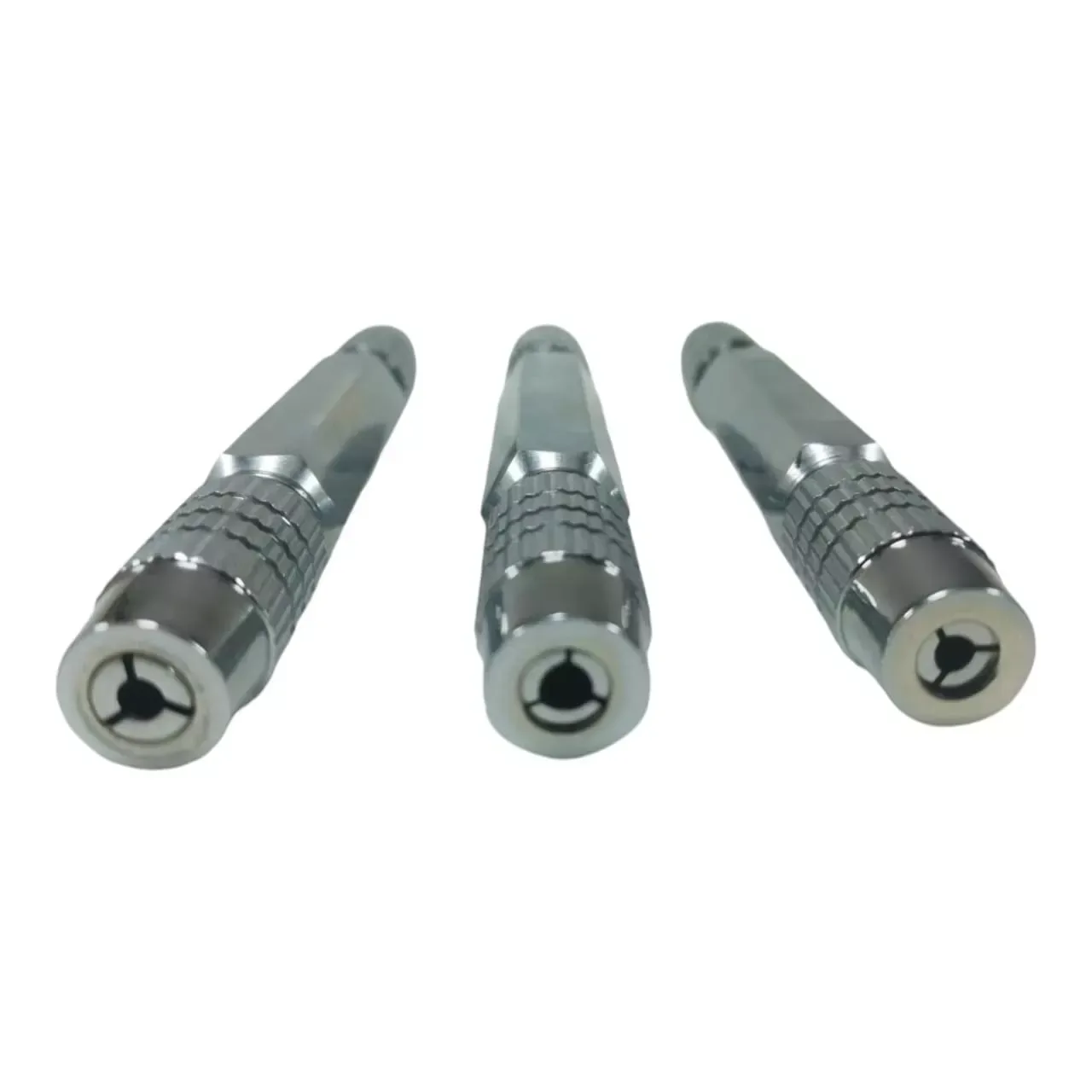

The restoration side of this range is the three-piece abutment preparation holder. It grips an abutment in a collet outside the mouth while the abutment is shaped in the laboratory, and it does not place an implant or tighten a screw. Prosthetic drivers and torque tools are not listed here; if you need them, send the implant system and connection you work with and we confirm what can be quoted.

• Compare implant prosthetic instruments

Documentation and Quote Requirements

Provide the workflow, kit or component reference, system and interface, diameter and length schedule, exact bill of materials, replacement needs, cassette, quantity, marking, packaging, destination, and required documents. For custom sets, identify every instrument or component rather than quoting only a piece count.

Manufacturer-direct supply can include available material and finish declarations, quality information, certificates, packaging specifications, approved samples, and export documentation. Product instructions and qualified clinical protocols control use and reprocessing. We support technical purchasing without prescribing implant treatment.

• Review implant instrument manufacturing
• View available evidence documents
• Request an implant instrument quote
