About Manual Root Fragment Extractor Set (2 Pcs)

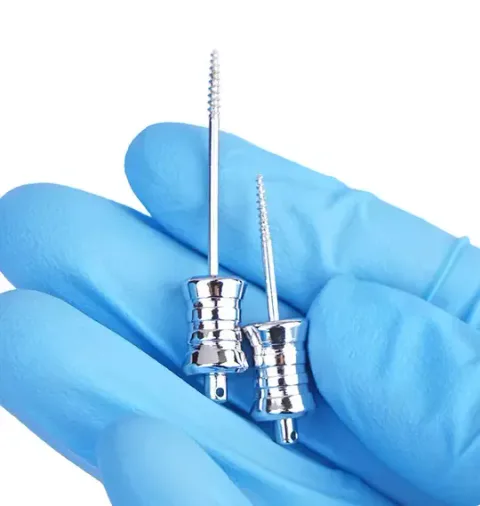

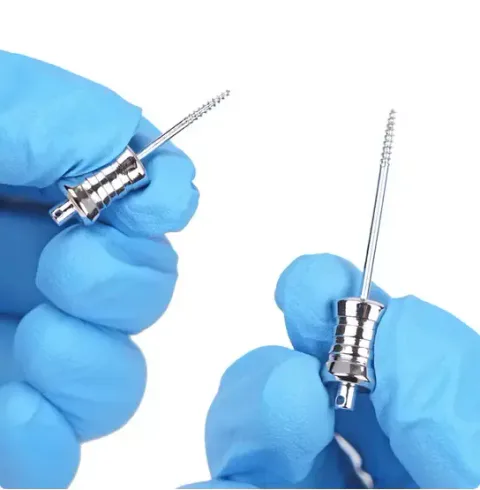

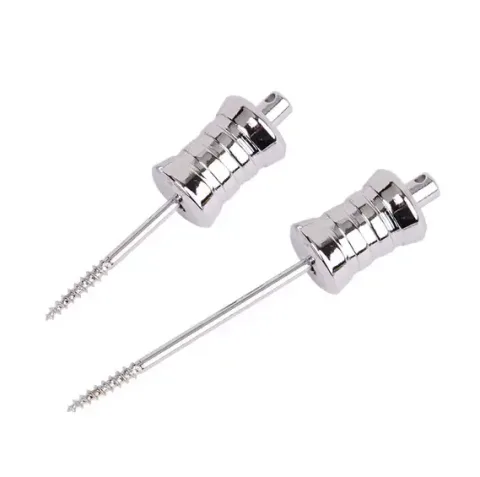

The Manual Root Fragment Extractor Set is a pair of screw-type hand instruments for retrieving root fragments. The set contains one short and one long extractor. Each is a complete instrument with its own grip, not a replacement tip for a shared handle.
Threaded tips with finger-operated grips

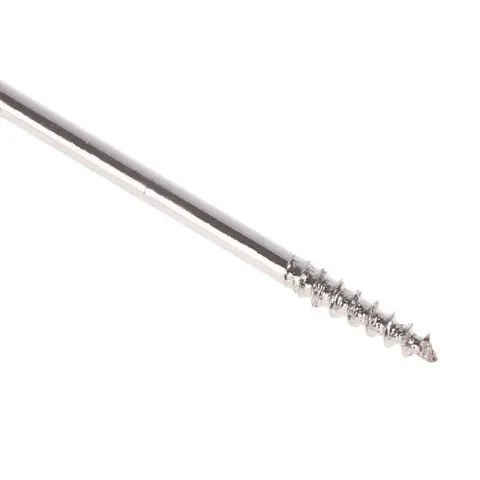

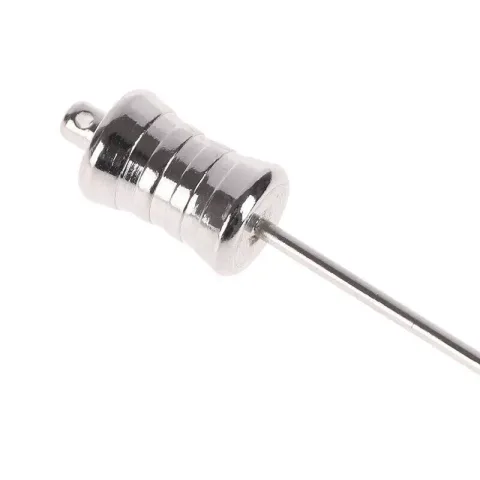

Each extractor has a pointed, threaded working end. The screw-type thread is the active feature: it engages the root fragment so the fragment can be retrieved. A smooth shaft joins the threaded tip to a compact grooved finger grip, and a small eye at the end of the grip completes the instrument. The eye is part of the handle, not a second working end.
These are manual instruments, operated with the fingers. They are not driven by a handpiece.
Short and long dimensions

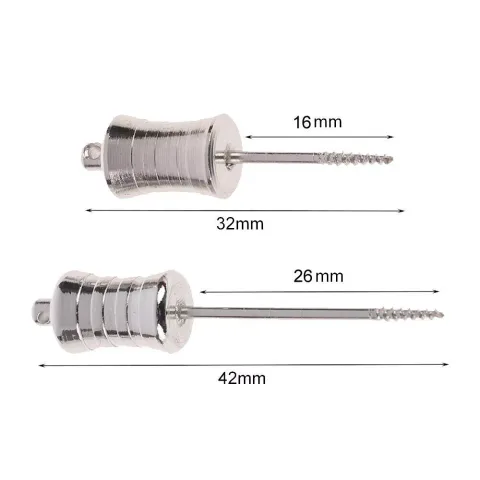

The two extractors differ in length by 10 mm. Nominal dimensions:
- Short extractor: 32 mm overall, 16 mm grip-to-tip portion
- Long extractor: 42 mm overall, 26 mm grip-to-tip portion
Overall length is measured across the whole instrument, including the grip. The grip-to-tip portion covers the smooth shaft and the threaded end together, so it is not the length of the thread alone. Neither figure is a recommended working depth.
Screw-type extractors, root-tip picks and forceps
Several instruments are sold for root-fragment work, and similar names can describe quite different forms. This pair uses a threaded tip that engages the fragment. A root-tip pick has a narrow pick or elevator-style end on a longer handle, and a root-fragment forceps grips with opposed jaws. If you need picks rather than screw-type extractors, see our root tip picks. These extractors are for natural root fragments; retrieval systems for fractured implant screws or endodontic files are different products.
Requesting this set
Ask for SKU DIS-EXT-RFE-2PC and tell us how many pairs you need and where they are going. If you are matching an instrument you already use, include its reference or the thread specification you need.
