Dental Instrument Materials and Stainless Steel Grades
Dental instrument materials determine how an instrument cuts, resists corrosion, and survives repeated sterilization. Most reusable dental instruments are forged from martensitic stainless steel, while some non-cutting instruments use austenitic grades. This guide explains the specific steel grades, hardness ranges, corrosion behavior, and manufacturing steps that separate a durable instrument from a disposable one.
Read image details
- Image description
- An instrument beside body, insert and surface labels introduces separate material checks.
- Image text
- Instrument materials BODY INSERT SURFACE
What Are Dental Instruments Made Of?
Most reusable dental instruments are made from surgical-grade stainless steel, an iron alloy containing at least 12 percent chromium. The chromium forms a passive chromium-oxide layer that resists rust, which is why stainless steel tolerates saliva, blood, and repeated autoclave cycles. Cutting instruments such as scalers, curettes, scissors, and forceps use hardenable martensitic grades, while retractors and other non-cutting instruments often use tougher, more corrosion-resistant austenitic grades.
The alloy is only part of the story. Forging method, heat treatment, surface finish, and passivation each change how the finished instrument performs. Two instruments cut from the same grade of steel can differ significantly in edge retention and corrosion resistance depending on how they were manufactured.
Stainless Steel Grades Used in Dental Instruments
Martensitic stainless steels are the dominant material for cutting and load-bearing dental instruments because they can be hardened by heat treatment. Common grades include AISI 410, 420, 420J2, 431, and the 440 series (440A, 440B, 440C). AISI 420 and 420J2 balance hardness, corrosion resistance, and cost for general instruments, while 440-series steels reach higher hardness and edge retention for fine cutting instruments such as scalers, curettes, and scissors.
Austenitic stainless steels such as AISI 304 (18/8) and 316 cannot be hardened by heat treatment but offer higher corrosion resistance and toughness. These grades suit non-cutting instruments including retractors, impression trays, and instrument cassettes. Selecting the grade is a trade-off: higher hardness improves cutting edges, while higher chromium and nickel content improves corrosion resistance.

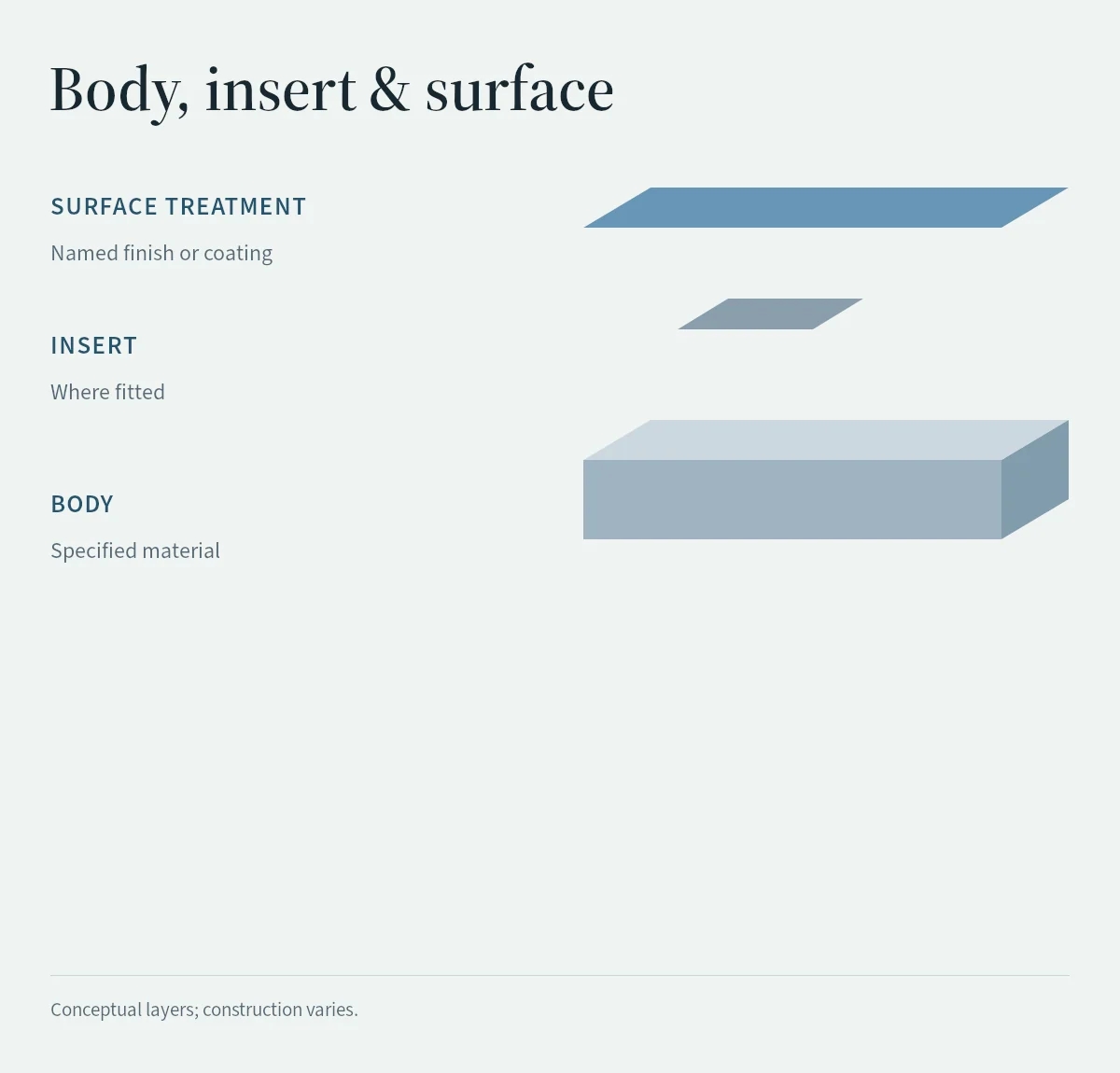

Read image details
- Image description
- An exploded conceptual diagram separates surface treatment, an optional insert and the instrument body.
- Image text
- Body, insert & surface SURFACE TREATMENT Named finish or coating INSERT Where fitted BODY Specified material Conceptual layers; construction varies.
Hardness, Edge Retention, and the Rockwell Scale
Instrument hardness is measured on the Rockwell C scale (HRC), and the target hardness depends on instrument function. Forceps and elevators are typically hardened to roughly 40 to 48 HRC so they resist bending and absorb extraction forces without cracking. Cutting instruments such as scalers, curettes, and scissors are hardened higher, commonly 50 to 58 HRC, so their edges stay sharp through more use and sharpening cycles.
Higher hardness improves edge retention but reduces toughness, so manufacturers temper the steel after hardening to reach a controlled balance. An instrument that is too soft loses its edge quickly; one that is too hard becomes brittle and can chip. Consistent, correctly tempered hardness is a reliable signal of a well-manufactured instrument.
Corrosion Resistance and Passivation
Corrosion resistance in dental instruments comes from the passive chromium-oxide layer on the steel surface. Passivation is a finishing process, usually with nitric or citric acid, that removes free iron from the surface and strengthens this protective layer. Instruments that skip proper passivation are more likely to develop rust spots, pitting, and staining during sterilization.
Corrosion is also influenced by use and reprocessing. Chloride exposure, harsh chemicals, mixed metals in an ultrasonic bath, poor water quality, and storing wet packs can all break down the passive layer. Thorough cleaning, drying, and correct sterilization protect the material investment as much as the original steel grade does.

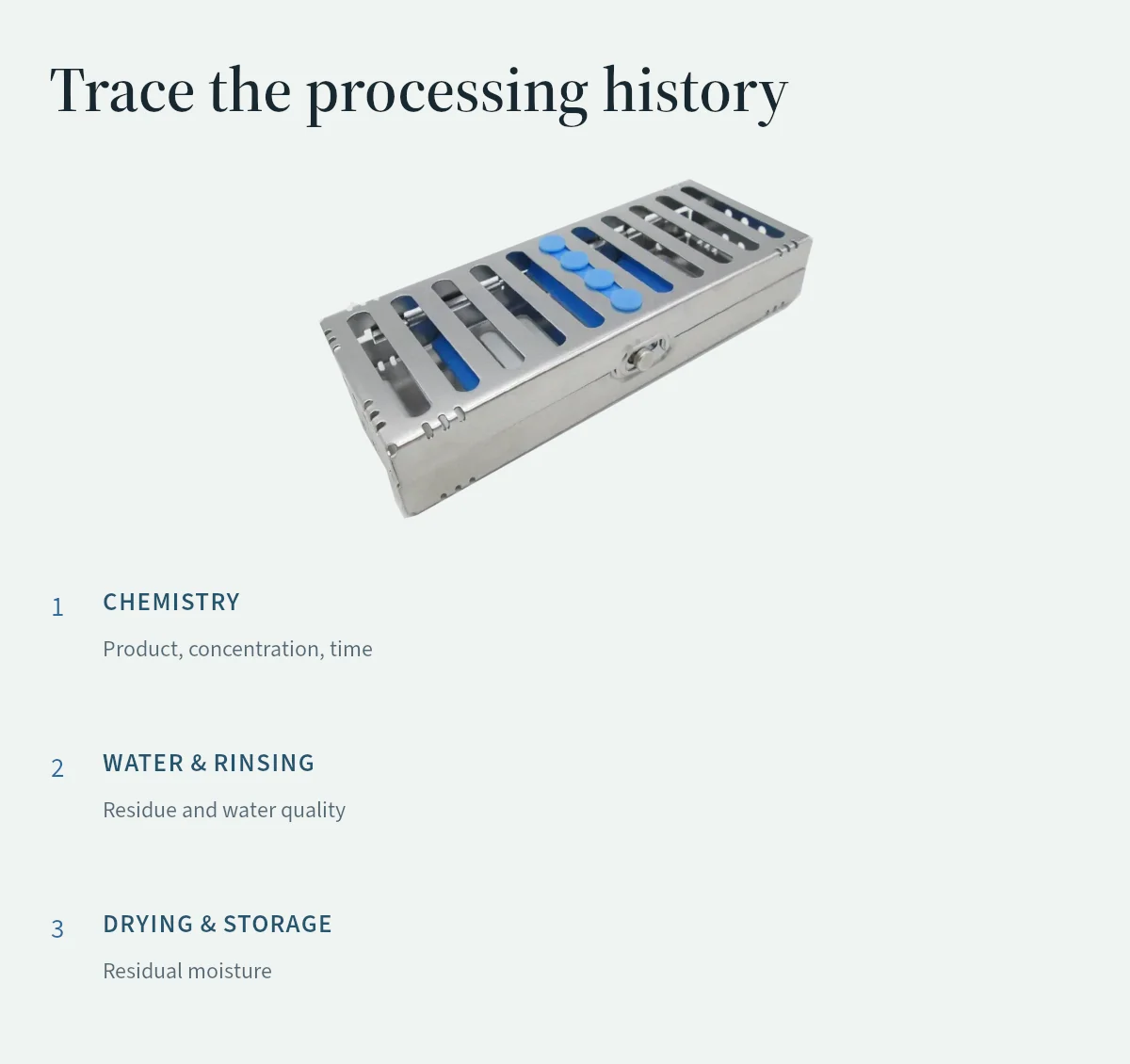

Read image details
- Image description
- A cassette and three processing-history checks: chemistry, water and rinsing, and drying and storage.
- Image text
- Trace the processing history 1 CHEMISTRY Product, concentration, time 2 WATER & RINSING Residue and water quality 3 DRYING & STORAGE Residual moisture
Forging, Heat Treatment, and Finishing
Hand-forged instruments are shaped from solid steel bar under repeated compressive force, which aligns the grain structure and produces a stronger instrument than stamping thin sheet metal. Sialkot, Pakistan is one of the world's largest hubs for hand-forged dental and surgical instrument manufacturing, supplying hospitals, clinics, and distributors in well over 100 countries. After forging, instruments are hardened, tempered, ground to their working shape, and finished.
Surface finish affects both performance and hygiene. A satin finish reduces glare under operatory lighting and hides minor wear, while a mirror polish is smoother and easier to clean but reflects more light. Both finishes are appropriate when the instrument is correctly passivated and inspected. Finish is a preference and workflow decision rather than a strict quality ranking.
What Can Be Confirmed Before You Order
We hold ISO 9001:2015 quality management certification. Request the certificate and its covered organization, site, scope and validity details before ordering. This management-system certification is not a blanket product or destination-market approval.
Sialkot production workflow
Material selection, forming, heat treatment where required, grinding, finishing, inspection, marking, and export packing.
Material02Grade confirmed by SKU
Material and applicable steel grade are confirmed against the quoted pattern instead of applying one grade to every instrument family.
MOQ03Order-type minimums
Samples: 1-3 pieces per pattern; standard product orders: confirmed with your quote; mixed wholesale: 25 instruments (mixed patterns); OEM: 25 pieces per pattern.
Packaging04Protective and branded options
Individual pouches, procedure sets, cassettes, protective bulk cartons, product labels, and approved private-label packaging.
Export05Documented dispatch
Commercial invoice, packing list, protective outer packaging, and courier or freight tracking appropriate to the order.
Dental Instrument Materials and Stainless Steel Grades FAQ
Does a tungsten carbide instrument have to be made entirely from tungsten carbide?
No. Many have a stainless-steel body with tungsten carbide (TC) inserts at the working surface, and makers list TC-insert scissors and tweezers separately from conventional models. Ask which component contains the carbide instead of treating TC as the composition of the whole instrument.
Does a gold-colored handle prove that an instrument has tungsten carbide inserts?
No. Some makers use a gold handle detail to flag tungsten carbide inserts within their own range, but that is a convention, not a standard. For any product, rely on the exact material specification and model reference; a photograph of the color alone does not show an insert or where it sits.
Is a surface coating the same thing as the instrument's base metal?
No. They are separate attributes: one manufacturer, for example, describes a sharpen-free range as a special alloy with a protective coating. A useful specification names the body or working-end material, the coating and where it is applied, because maintenance eligibility has to match that construction. A steel instrument with a named coating may have different sharpening requirements.
Can a steel grade alone tell me how long a cutting instrument will last?
No. Service life also depends on heat treatment, use and maintenance; one manufacturer pairs its 440A steel with a proprietary heat-treatment process and says so. Compare the finished construction and the maintenance guidance instead of deriving a fixed service life from the grade name.
Can stainless-steel instruments develop stains or corrosion?
Yes. Manufacturers' instrument instructions discuss staining, corrosion and water-quality factors. If it happens, record the affected reference, the appearance and the processing history, and use the instructions for that instrument to assess it; a spot alone does not show the alloy grade or the cause.
