Dental Extraction Tray Setup and Instrument List
A dental extraction tray should match the planned procedure rather than use one oversized set for every case. This guide separates a core simple-extraction setup from the additional instruments commonly prepared for surgical extraction, retained roots, tissue management, bone finishing, and closure.
Read image details
- Image description
- Forceps and a root elevator illustrate the starting point for a procedure-specific extraction set.
- Image text
- The extraction tray SELECT THE WORKING ENDS Then build the procedure-specific set.
Core Dental Extraction Tray Setup
A basic extraction setup commonly starts with a mouth mirror, explorer or periodontal probe, cotton pliers, a reusable aspirating syringe, the tooth-specific extraction forceps, and a straight elevator. Gauze, suction, local-anesthetic supplies, and the practice's required protective and sterile consumables complete the working setup but are not reusable hand instruments.
Forceps should be selected for the arch, tooth position, crown and root anatomy, while the elevator pattern should match the intended luxation task. Standardizing the core set in a cassette makes the same instruments easier to identify, reprocess, inspect, and return to the operatory.
Additional Instruments for a Surgical Extraction Setup
A surgical extraction or oral surgery tray usually adds a scalpel handle, periosteal elevator, tissue forceps, retractor, root tip picks, Cryer elevators, surgical curette, bone rongeur, bone file, needle holder, and suture scissors. The exact selection depends on the tooth, radiographic findings, planned flap or bone management, and the clinician's protocol.
These additions should be treated as a procedure-specific extension rather than placed into every simple extraction cassette. Keeping core and surgical modules separate reduces tray weight and makes it easier to inspect high-risk working ends such as elevator tips, rongeur jaws, scissor blades, and needle-holder serrations.

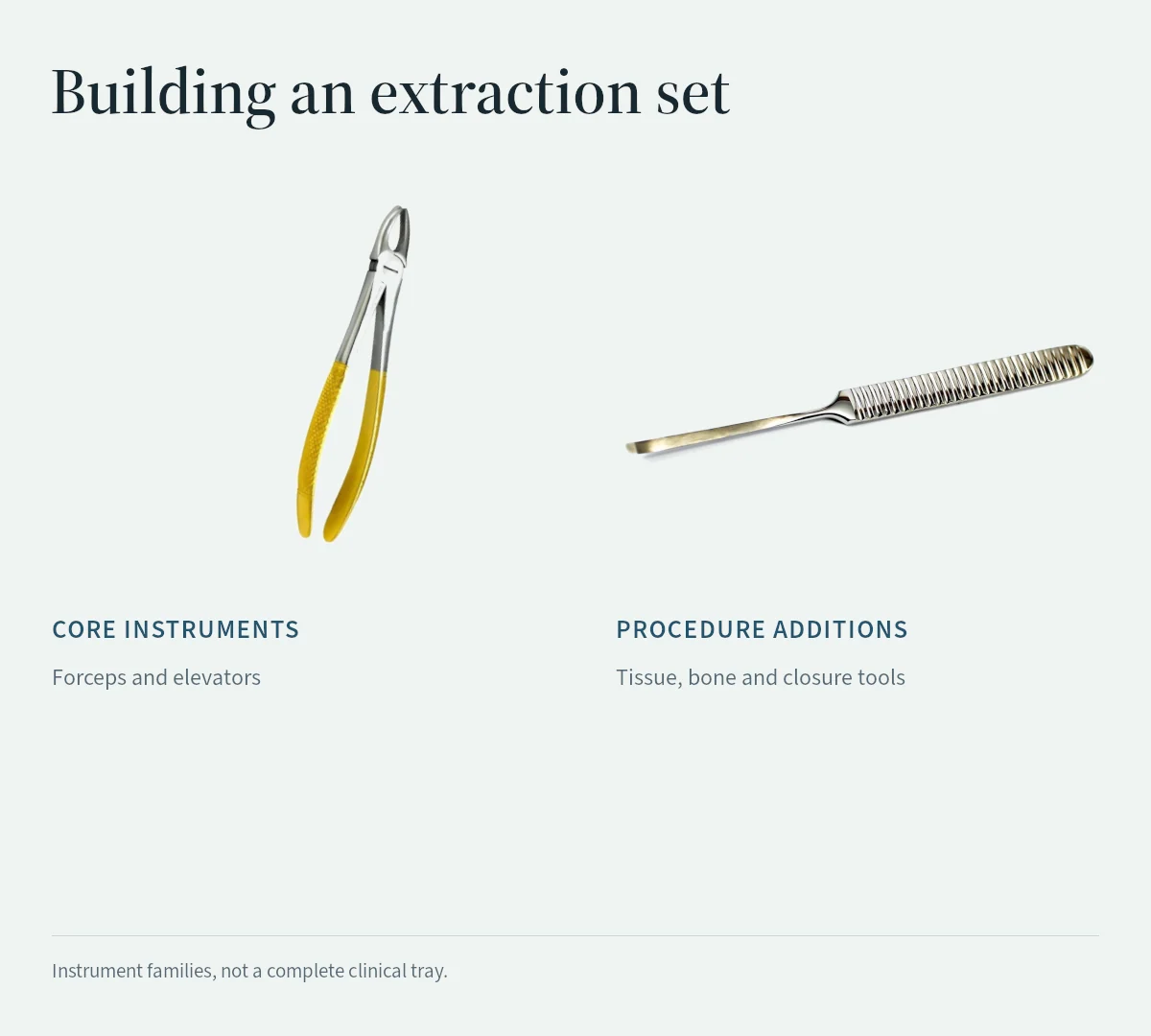

Read image details
- Image description
- Forceps and a periosteal elevator illustrate core extraction instruments and procedure-specific additions.
- Image text
- Building an extraction set CORE INSTRUMENTS PROCEDURE ADDITIONS Forceps and elevators Tissue, bone and closure tools Instrument families, not a complete clinical tray.
Retained-Root and Root-Tip Instrument Module
Retained roots often require a narrower set of instruments that improves access and controlled engagement. Root tip picks, left and right Cryer elevators, fine luxating elevators, root forceps, a surgical curette, suction, and appropriate visualization support are common additions selected by the clinician.
A root module should be labelled separately so the assistant can identify the fine working ends quickly and protect them during transport and reprocessing. The product specification should distinguish straight, left, right, and paired patterns rather than grouping every elevator under one generic name.
Organizing the Oral Surgery Tray
Arrange and label reusable instruments according to the clinic's approved workflow, keeping sharp working ends protected and visible. A cassette with silicone rails prevents loose instruments from striking one another and allows the set to remain together through cleaning, inspection, packaging, sterilization, storage, and chairside setup.
Keep an inventory sheet for each standardized cassette. Record the instrument name and pattern, quantity, inspection points, and replacement trigger. This turns “oral surgery tray setup” into a repeatable procurement and reprocessing system rather than a memory-based list.
- Dental cassettes and trays
- Dental instrument sterilization guide
- UConn School of Dental Medicine infection-control manual

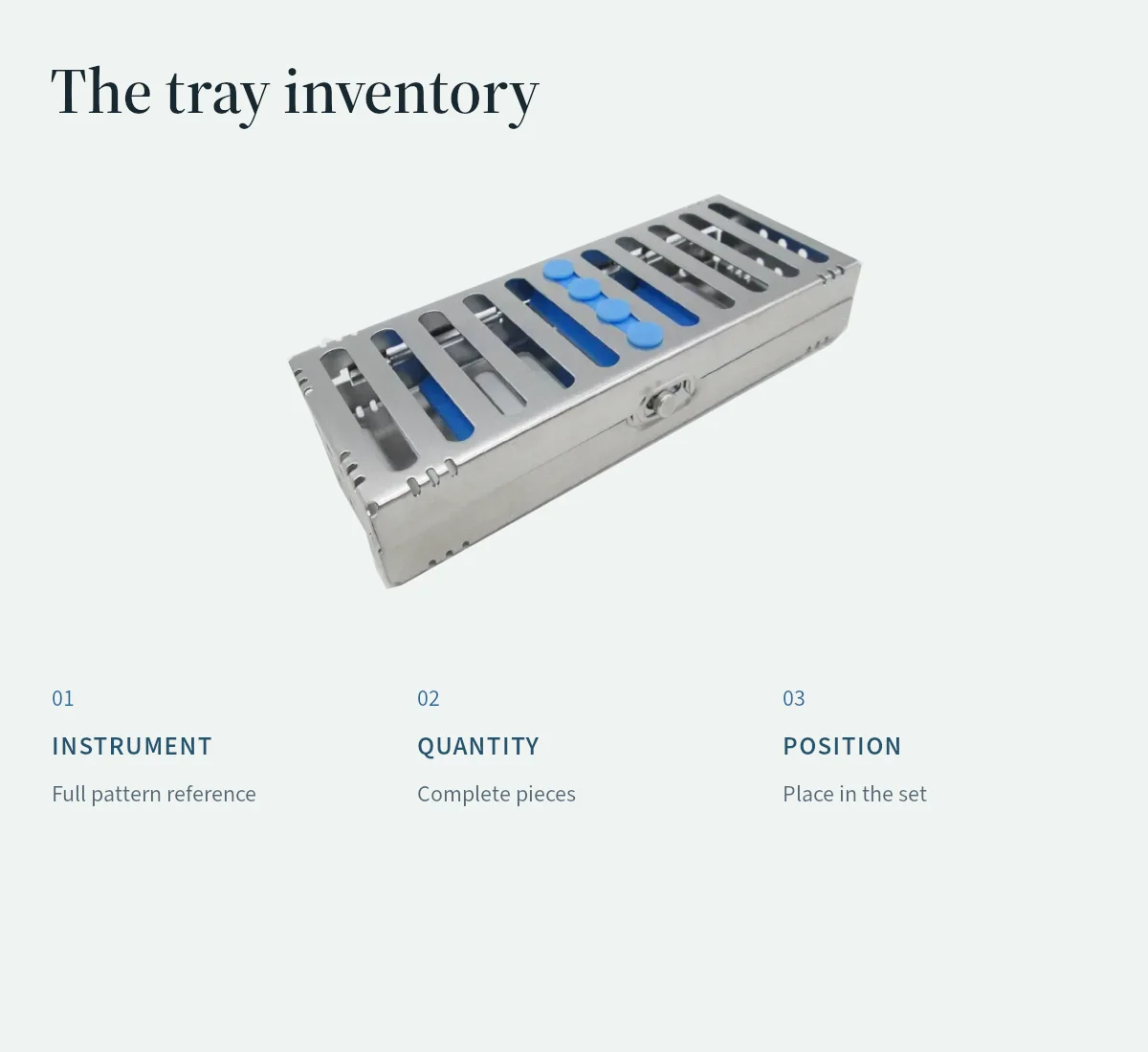

Read image details
- Image description
- A cassette illustrates three inventory fields: instrument reference, complete-piece quantity and position.
- Image text
- The tray inventory 01 02 03 INSTRUMENT QUANTITY POSITION Full pattern reference Complete pieces Place in the set
Choosing a Standard Extraction or Oral Surgery Kit
Start with the procedures the practice performs and have the responsible clinician approve the contents. A general practice may need several compact simple-extraction sets and one fuller surgical set, while an oral surgery center may standardize multiple surgical cassettes with broader elevator, retractor, bone-management, and suturing options.
This page is an instrument-planning reference, not a clinical protocol. Case selection, instrument use, infection control, and setup approval should follow the licensed clinician's judgment, the manufacturer's instructions, and applicable local standards.
Extraction tray checklist
Grouped by clinical stage for a surgical extraction setup. This is an instrument-planning checklist, not a clinical protocol — the responsible clinician approves the final tray for the specific case.
01Examination
02Anesthesia
Needles, cartridges, and other single-use anesthetic supplies are consumables, sourced separately.
03Luxation
04Extraction
05Hemostasis
No dedicated hemostat/clamp product is currently stocked in our catalog; hemostasis in this setup relies on gauze and pressure.
06Suturing
What Can Be Confirmed Before You Order
We hold ISO 9001:2015 quality management certification. Request the certificate and its covered organization, site, scope and validity details before ordering. This management-system certification is not a blanket product or destination-market approval.
Sialkot production workflow
Material selection, forming, heat treatment where required, grinding, finishing, inspection, marking, and export packing.
Material02Grade confirmed by SKU
Material and applicable steel grade are confirmed against the quoted pattern instead of applying one grade to every instrument family.
MOQ03Order-type minimums
Samples: 1-3 pieces per pattern; standard product orders: confirmed with your quote; mixed wholesale: 25 instruments (mixed patterns); OEM: 25 pieces per pattern.
Packaging04Protective and branded options
Individual pouches, procedure sets, cassettes, protective bulk cartons, product labels, and approved private-label packaging.
Export05Documented dispatch
Commercial invoice, packing list, protective outer packaging, and courier or freight tracking appropriate to the order.
Dental Extraction Tray Setup and Instrument List FAQ
Does buying an instrument tray also include the instruments placed in it?
Not unless the listing says so. A surgical kit can include a tray and a defined component list, while a cassette or tray can be sold as an organizer only. Keep the organizer and its contents as separate order lines, and check the reference and the included-items list before you use the order to complete an inventory.
Can a ready-made surgical kit be treated as an approved extraction setup?
Only after you check it. A ready-made kit has a listed component assortment, so compare that list reference by reference and quantity by quantity with the setup your responsible team approved. The kit name alone does not show that your facility has approved it.
Why should consumables and powered equipment be listed separately from reusable hand instruments?
They have different order identities and replenishment needs. Keep reusable instruments by pattern and reference, consumables by their approved product specification, and equipment or accessories by their system reference. This makes an omitted item visible without assuming that an instrument set includes needles, suction components, blades or other supplies.
Does a cassette's slot count prove that it will fit an extraction set?
No. A slot count records quantity, not a documented match to your extraction-set configuration. Compare the complete instrument list with the cassette's layout and holding instructions, and record every instrument reference and any required accessory.
What should a replacement schedule for a standardized tray contain?
Keep one line for each approved instrument reference and quantity per tray, with the working-end pair or scale where relevant. Link that line to the corresponding position on the organizer record. A replacement can then restore the chosen configuration without relying on an informal description such as the small elevator.
