Dental Scaler Types and Selection Guide

What Is a Dental Scaler?

A dental hand scaler is a reusable hand instrument whose working end is designed around calculus removal. The broad term includes several shapes, but the most familiar is the sickle scaler. A sickle working end has a pointed toe, triangular cross-section, two cutting edges, and a face that meets the lateral surfaces at defined angles. Those features distinguish it from a curette, whose rounded toe and semicircular cross-section support a different range of adaptation. Keeping the families separate helps buyers order the correct instrument instead of a vague “periodontal tool.”

The words anterior and posterior describe access emphasis, not a ranking. Anterior sickle scalers usually have straighter shanks for accessible surfaces, while posterior patterns use more complex shank geometry to reach posterior and interproximal areas. Blade width, length, curvature, terminal-shank angle, handle diameter, and balance still vary within each group. That is why an order should identify a named pattern and its specification rather than request a generic “dental scaler.”

Power-driven ultrasonic and piezoelectric tips are also called scalers, but they are not hand-scaler variations. Their generator technology, connection, frequency range, irrigation, power setting, and manufacturer compatibility create a different purchasing requirement. This guide covers reusable hand instruments only; a powered tip has to be matched to its specified powered system and is a separate request.

• Dental scaler enquiries
• Send a hand scaler enquiry

Sickle Scaler Geometry: Pointed Toe, Triangular Cross-Section, and Cutting Edges

The pointed toe is the easiest visual clue that an instrument is a sickle scaler rather than a curette. Viewed in cross-section, the blade is triangular, creating two lateral cutting edges. The working end may be straight or curved, and its shank may be simple or complex depending on the access for which the pattern was designed. These are product-identification features; this guide does not prescribe angulation or a clinical stroke.

For purchasing, the blade and terminal shank belong in the controlled specification. Ask for the named pattern, blade length and width where available, toe and edge finish, terminal-shank form, handle style, overall length, finish, and physical sample. A product that resembles H6/H7 in a photograph may still differ in blade dimensions or shank angle. The approved sample or drawing gives the supplier and buyer a stable reference for repeat orders.

Edge condition is a maintenance and replacement matter. A dull or distorted working end means the instrument needs sharpening or replacing, and a sharpening claim should not be read as permanent edge retention. Facilities should inspect the working end under their approved process, protect it during reprocessing, and maintain or replace it according to the product instructions and local protocol.

Anterior Sickle Scalers: H6/H7, Morse, U15, 137, and Jacquette 30/33

H6/H7 is a widely recognized double-ended anterior sickle pattern. It sits in an anterior comparison alongside Morse 0/00, U15/30, U15/33, 137, H5/33-style combinations, and anterior Jacquette references such as 30/33. These names are not keyword variants of one instrument. Morse 0/00 emphasizes a fine working end, while U15 and Jacquette combinations use their own blade and shank forms. Keep the full pattern name on the quote line and on the replacement record.

Keep the family, the full figure pair, the blade and shank details and the handle reference together on every order line. A clinic may standardize one familiar pattern, while a distributor may carry several handle and pattern combinations; either way, write each instrument under one precise description instead of “dental scaler,” “anterior scaler” and “calculus remover” in turn, because that is how similarly named instruments get substituted.

When comparing samples, record blade symmetry, pointed-toe finish, edge consistency, shank alignment, handle diameter and texture, overall balance, marking legibility, and the match between repeat units. State whether the order needs individual instruments, a mixed scaler selection, a periodontal kit, or private-label packaging. These commercial details change the quote but do not change the underlying pattern identity.

Read image details

Image description

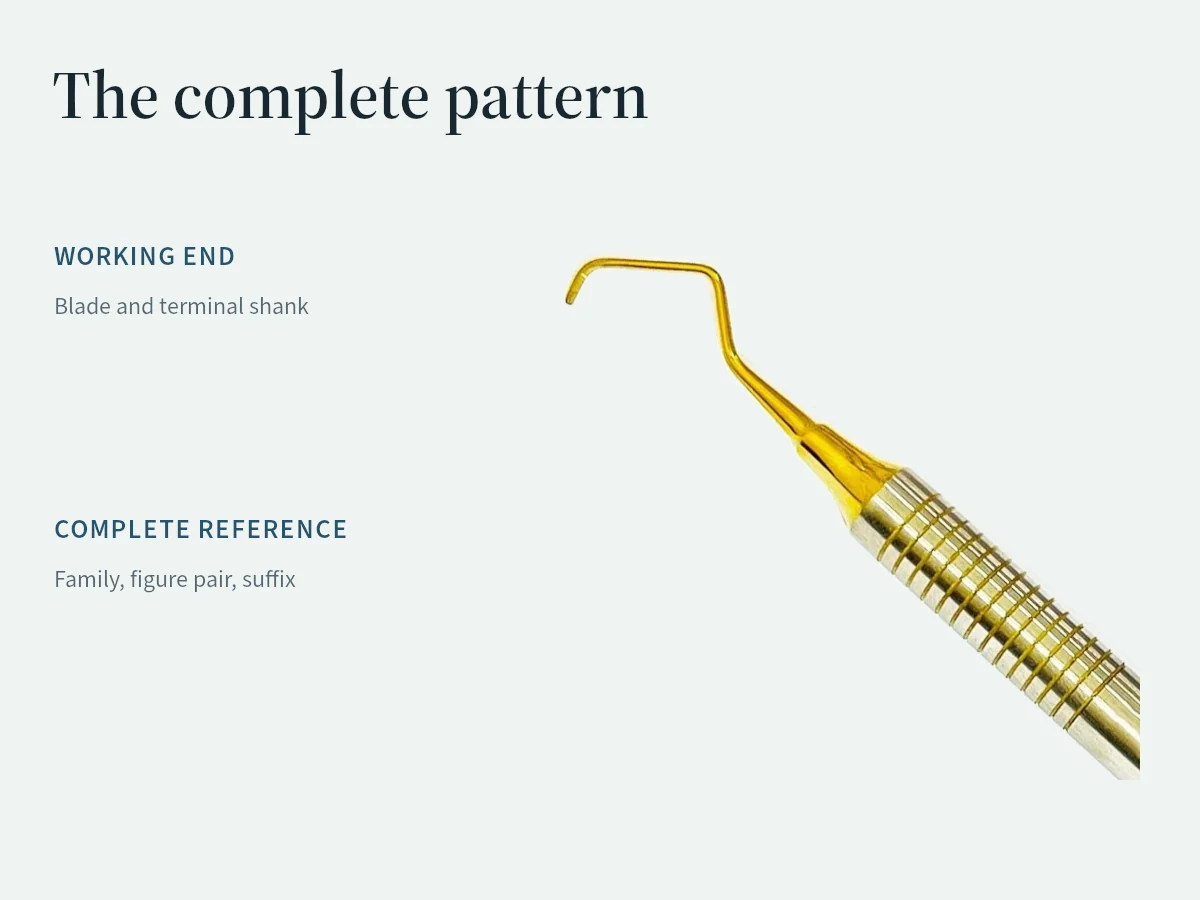

A working-end illustration highlights full pattern references and configuration checks for scaler selection.

Image text

The complete pattern WORKING END Blade and terminal shank COMPLETE REFERENCE Family, figure pair, suffix

Posterior Sickle Scalers: 204S, 204SD, 204 IUFW, 135, and Jacquette Patterns

Posterior sickle scalers retain a pointed toe and triangular cross-section but use terminal shanks and blade curves shaped for posterior access. Established examples include 204S, 204SD, 204 IUFW, 135, and posterior Jacquette references such as 31/32 and 34/35. The shared 204 prefix does not mean that every blade width, shank length, or curve is the same. Keep the full suffix on the order line and approve the working-end dimensions.

Jacquette is a pattern family that spans anterior and posterior references. The number pair identifies the working-end combination, so quote 30/33, 31/32 or 34/35 as a pair rather than asking for “a Jacquette.” A description that merges several figures cannot tell a supplier which working ends you expect.

For a posterior scaler quote, state the exact pattern, handle family, finish, quantity, marking, set composition, packaging, and destination. If an instrument must match a current clinic or distributor line, include a clear reference and dimensions. Review the terminal shank, blade curve, edge meeting, toe finish, balance, and repeat-unit consistency on the approved sample.

Hoe Scalers and Periodontal Files

A dental hoe uses a single straight cutting edge set at an angle to the shank. A periodontal file uses a series of small cutting surfaces on its head. Neither should be described as merely another H6/H7 shape. Common procurement references include hoe 7/8 and 8/9 plus Hirschfeld file patterns such as 3/7 and 5/11. Their head or blade dimensions, shank angle, handle, and finish need their own specification.

This distinction matters when you build or replenish a periodontal instrument range: each order line should identify the exact instrument family and pattern, so that the working-end geometry you expect is the geometry you receive and no instrument is substituted by mistake.

For sample approval, inspect the definition of the hoe edge or file head, shank alignment, working-end surface, handle security, markings, and protective packaging. This guide is an identification and purchasing reference. Product selection and use remain with the responsible clinician and the instructions supplied for the exact instrument.

Scaler, Universal Curette, and Gracey Curette: Three Different Working Ends

A sickle scaler has a pointed toe and triangular cross-section. A universal curette has a rounded toe, semicircular cross-section, and two cutting edges designed to work across multiple tooth surfaces. A Gracey curette is area specific, with an offset blade and one primary lower cutting edge. These are distinct instruments even when they sit next to one another in a periodontal kit.

Universal curette families include Barnhart, Columbia, Younger-Good, McCall, and Langer. Gracey curettes are usually identified by area-specific number pairs such as 1/2, 5/6, 7/8, 11/12, and 13/14, with standard, rigid, extended-shank, or other defined configurations. The boundary matters to a buyer comparing periodontal hand instruments, because each family needs its own reference: a similar handle or a shared number does not make two of them interchangeable.

Our listed Gracey curette set covers the seven pairs 1/2, 3/4, 5/6, 7/8, 9/10, 11/12 and 13/14. Universal curettes and scalers are quoted by pattern.

• Universal curette enquiries
• See the seven-piece Gracey curette set
• Compare Gracey curettes

Read image details

Image description

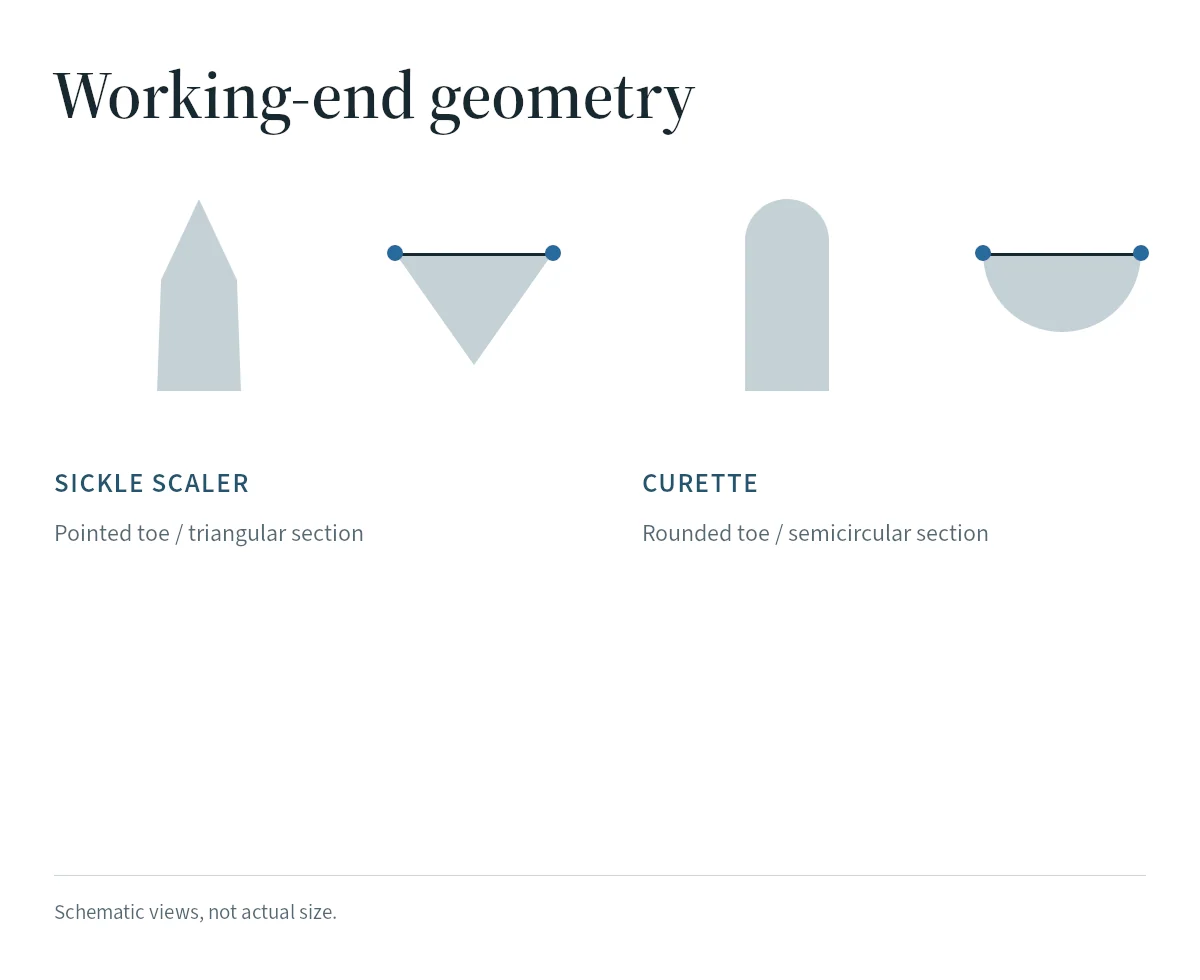

Schematic working ends compare a pointed sickle scaler with rounded curette toes.

Image text

Working-end geometry SICKLE SCALER CURETTE Pointed toe / triangular section Rounded toe / semicircular section Schematic views, not actual size.

Implant Maintenance Scalers Need Material and Surface Confirmation

An implant-maintenance hand instrument can resemble a conventional H6/H7 or 204SD pattern, but the working-end material and intended surface interface are critical product attributes. Shape alone does not show whether the instrument is suitable for a particular implant, abutment, or restorative surface. The exact instrument you order must state its component materials and the evidence available for that configuration.

Maintenance instruments are quoted on request, and we make no claim of universal compatibility or a clinical outcome. Provide the maintenance protocol, surface and system information, working-end family, material requirement, replacement-end needs, handle, quantity, and packaging. The responsible clinician should verify the applicable manufacturer instructions before approval.

Material words are specifications, not labels. “Titanium,” “plastic” or “implant” scaler names a working-end material that has to be stated for the exact instrument, with its evidence, and it should not be assumed from a name, an outline or a resemblance to a conventional stainless-steel pattern.

Handle, Finish, Edge, and Reprocessing Details for Purchasing

The working end identifies the scaler family, but the handle affects the complete product specification. Buyers can compare handle diameter, solid or hollow construction where documented, texture, balance, marking area, finish, and color-identification request. Do not infer handle weight or material from a photograph. Put the requirement into the quotation and approve the sample.

A satin or polished finish is a commercial option only when available for the exact pattern. Edge geometry and material evidence remain separate fields. Manufacturing, material-grade evidence, MOQ handling, packaging, and export supply are available business capabilities, and each record is matched to the quoted instrument. Manufacturing operates under ISO 9001:2015 quality management certification.

Reprocessing instructions belong to the exact product and the healthcare facility’s validated protocol. Protect working ends in a compatible cassette or holder, inspect after cleaning, and follow the instructions for packaging, sterilization, drying, storage, maintenance, and replacement. This guide does not invent a sterilization cycle or claim unlimited reuse.

• Read the dental instrument quality guide
• Read the sterilization and autoclave guide

How to Write a Quote-Ready Dental Scaler Specification

Write one line per scaler pattern. State the family, complete figure or number pair, anterior or posterior designation, working-end geometry or dimensions where known, terminal-shank requirement, handle, material or coating requirement, finish, quantity, sample need, marking, packaging, and destination. For a mixed set, list the quantity of every pattern rather than using “assorted scalers.”

For example, a procurement line can identify “H6/H7 anterior sickle scaler, approved double-ended pattern, selected handle, satin finish, sample required” or “204SD posterior sickle scaler, exact blade and shank dimensions to approved reference.” An implant-maintenance line should also name the intended surface and required working-end material. These examples reduce ambiguity without pretending to be a universal clinical recommendation.

Price and MOQ remain quote based because pattern mix, order size, handle, finish, private-label marking, packaging, and destination change the commercial response. The quotation can include the material record, packaging specification, export documentation, and ISO 9001:2015 certification documents available for review.
