Dental Instrument Identification Chart
This chart helps buyers, procurement teams, and dental students identify a dental instrument family from a description, image, or partial pattern name and route the question to the right catalog page. It is an identification and procurement aid — not a clinical technique guide, and not a substitute for the manufacturer instructions supplied with the exact product. Where two families are commonly confused, the chart flags what to verify before ordering.
Read image details
- Image description
- Mirror head, probe graduations and cotton-plier gripping ends highlight useful identification features.
- Image text
- Instrument identification HEAD GRADUATIONS GRIPPING ENDS
What to Know Before Comparing Products
- Identify the instrument family first — then the pattern, size, and configuration.
- Working-end geometry (pointed vs rounded toe, single vs double cutting edge, blade profile) usually settles which family an instrument belongs to.
- Similar silhouettes are common between families. A tissue forceps is not tissue pliers in every catalog, and a periosteal elevator is not a root elevator.
- For any grouped pattern, record the exact figure, dimensions, and side on the order — a family name alone is rarely enough to reorder the same instrument.
How to Use This Chart
Match the visible working end and the intended clinical workflow first, then narrow by pattern name. Look at the "Commonly confused with" column carefully — many dental instruments share broad silhouettes across families, and buyers often end up with the wrong pattern by ordering on a family name alone. When the chart says "verify before ordering," those are the fields the buyer should send with the enquiry to prevent a substitution.
The chart intentionally covers the dental taxonomy this site stocks; it is not a general dental-instrument encyclopedia. If a pattern you are looking for is not shown, send the name, photograph, or catalog reference through the quotation form and it will be routed to the correct family.
Cross-Family Confusions Worth Naming Explicitly
A few of the crossings in the chart above cause a disproportionate share of ordering mistakes. Periosteal elevators and dental root elevators share the word "elevator" but are completely different instruments — periosteals reflect soft tissue with a blunt, wide blade, while root elevators luxate teeth with a sharp working blade. Ordering "elevator, Molt #9" from an extraction supplier can produce either depending on how the supplier reads the request. Always name the family before the pattern.
Sickle scalers and curettes are the other frequent confusion in periodontal ordering. Both are periodontal hand instruments, both may be double-ended, and both use the same handle families — but their working ends are fundamentally different. A pointed toe with a triangular cross-section is a sickle scaler; a rounded toe with a semicircular section is a curette. If the pattern name is unfamiliar, verify the toe form on the sample before approving the range.
Tissue forceps (spring-handle) and cotton pliers (also spring-handle, also often locking) look similar in a small catalog image and are sometimes labelled interchangeably by non-dental suppliers. A tissue forceps has finer, often toothed tips designed for soft tissue; a cotton pliers has broader, serrated tips designed to hold cotton rolls and small items. If a quote returns "tissue pliers" or "dressing forceps" without further detail, ask for a photograph of the tip before ordering.
- Compare dental scalers and curettes side by side
- Compare periosteal elevator patterns
- Compare periodontal probe markings
Read image details

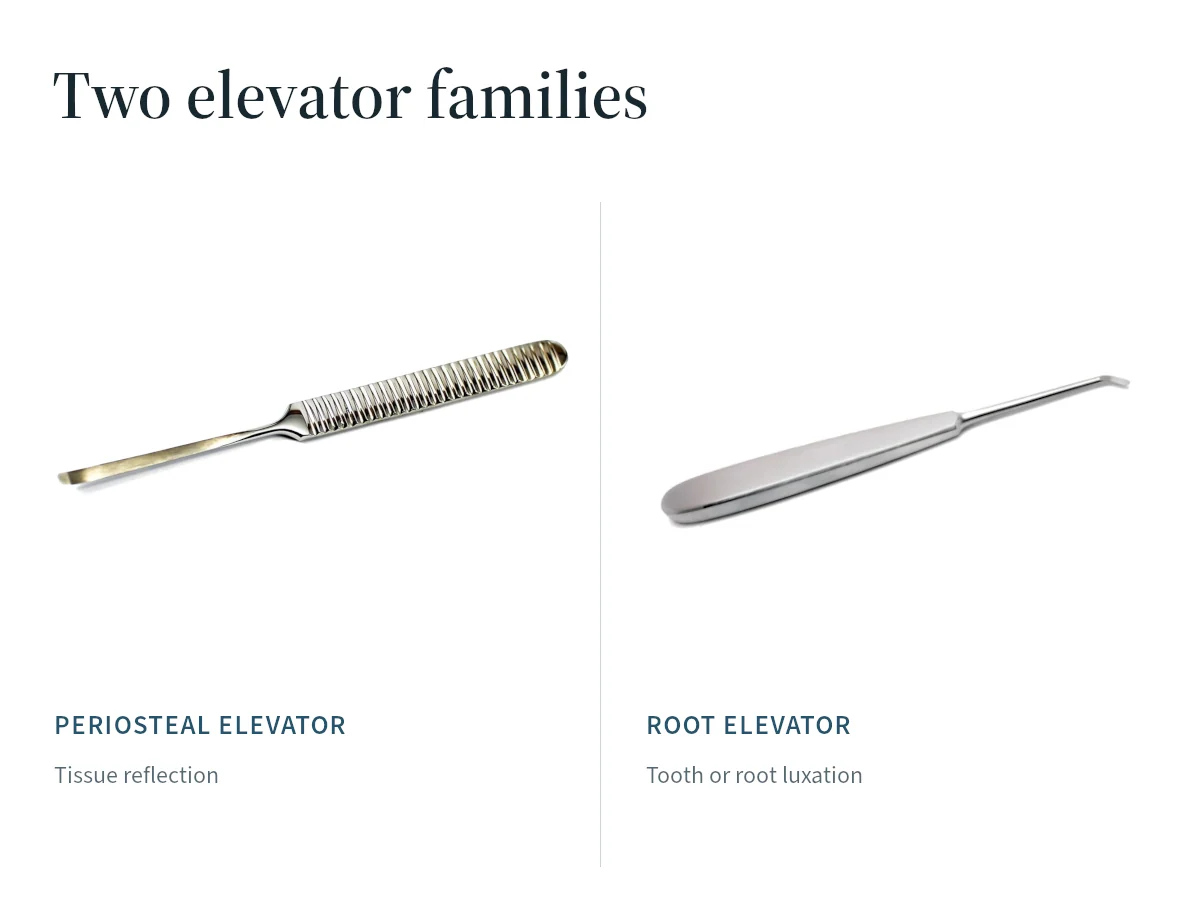

- Image description
- Root and periosteal elevator forms compared by their different working ends and roles.
- Image text
- Two elevator families PERIOSTEAL ELEVATOR ROOT ELEVATOR Tissue reflection Tooth or root luxation
From an Identified Family to a Repeatable Order
Once the family is confirmed, the specification fields in the last column of the chart are what the supplier needs on the order line. A dental instrument name alone rarely defines a specific SKU: "extraction forceps" covers dozens of tooth-specific figures, "periodontal knife" covers several blade shapes, and "articulator" covers everything from a simple hinge to a fully adjustable frame. Send the family plus every field the chart flags, and attach a photograph if the instrument must match one you already own.
For repeat orders, keep a written reference sheet with the approved supplier catalog number or slug, the figure or pattern name, the fields recorded on the sample approval, and the date. This one page prevents a later reorder from silently arriving with a similar-looking substitute — which is the failure mode this chart is designed to prevent.
Read image details

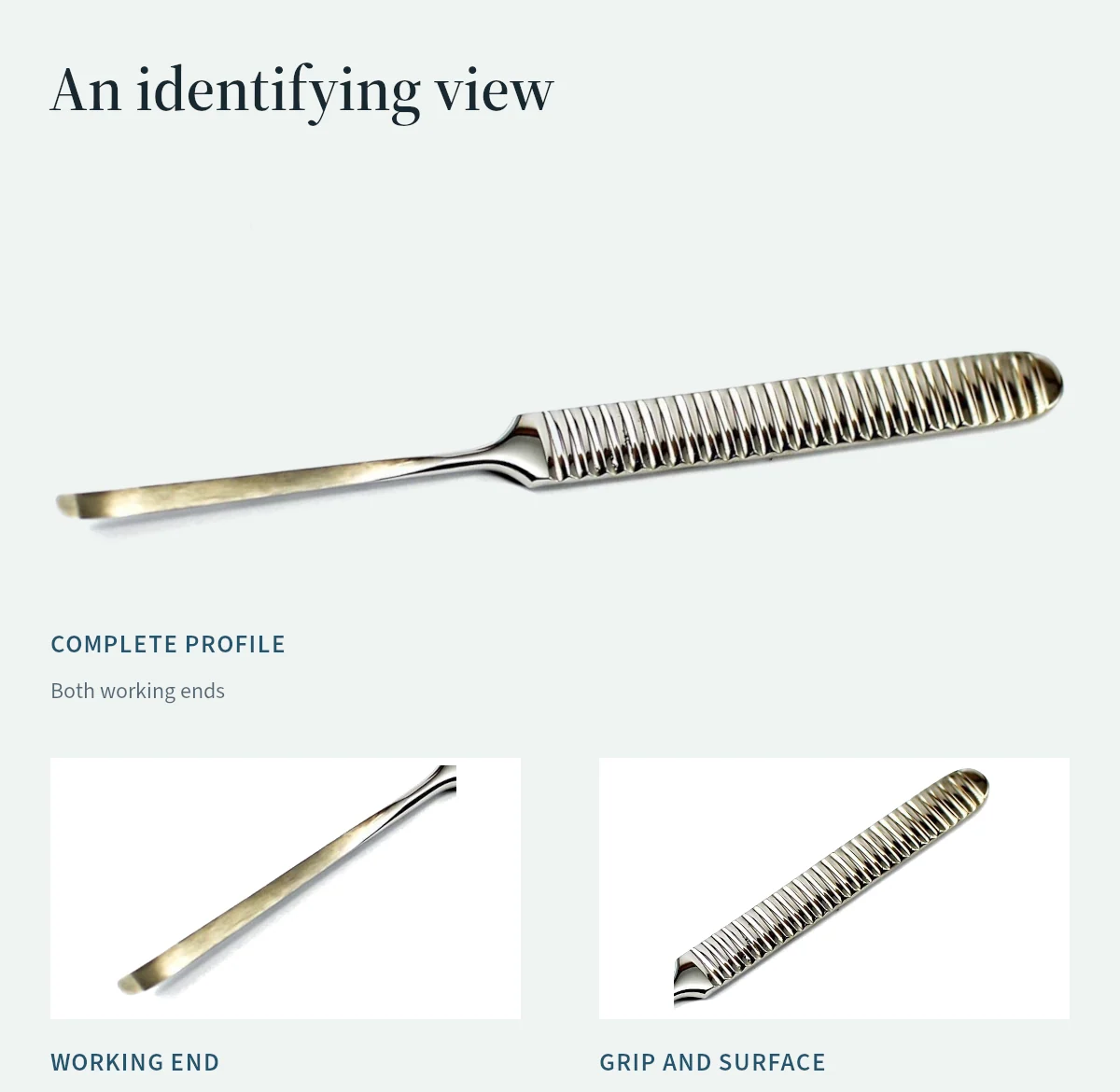

- Image description
- A complete periosteal elevator and detail views show how a full profile, working end and grip support identification.
- Image text
- An identifying view COMPLETE PROFILE Both working ends WORKING END GRIP AND SURFACE
Dental instrument family identification
Identify the instrument family, then the pattern, then the specification fields that must appear on the order.
| Family | Identifying working end | Common patterns / examples | Commonly confused with | Verify before ordering |
|---|---|---|---|---|
| Mouth mirror | Reflective disc on threaded shank | #4, #5, front-surface, double-sided | Intraoral photo mirror (different reflective coating) | Head diameter, front vs back surface, cone-socket thread |
| Dental explorer | Fine curved or straight metal tip on a slim handle | Shepherd hook #23, pigtail, ODU 11/12, DG-16 endodontic | Endodontic explorer (finer, straighter tip) | Pattern name, single or double-ended, tip form |
| Periodontal probe | Graduated slim rod with mm markings | Williams, UNC-15, Marquis, WHO/CPI, Nabers (curved) | Endodontic explorer (unmarked), Nabers vs straight probe | Marking sequence (e.g. 1-2-3-5-7-8-9-10 mm), tip ball diameter |
| Cotton pliers | Angled or straight tweezers with locking or non-locking spring | College (locking), Perry, Meriam | Tissue forceps (finer tips, more delicate) | Locking vs non-locking, angled vs straight, serration pattern |
| Sickle scaler | Pointed toe, triangular cross-section, two cutting edges | H6/H7, Morse 0/00, U15/30, 204S, 204SD, Jacquette 30/33 | Universal curette (rounded toe, semicircular section) | Full pattern name, anterior vs posterior, handle |
| Universal curette | Rounded toe, semicircular cross-section, two cutting edges | Barnhart 1/2, Columbia 4R/4L, Younger-Good 7/8, McCall 13/14, Langer | Sickle scaler (pointed toe), Gracey curette (single cutting edge) | Pattern family and number pair, terminal shank |
| Gracey curette | Rounded toe, offset blade, ONE primary lower cutting edge | 1/2, 5/6, 7/8, 11/12, 13/14, 15/16, 17/18 (standard, rigid, extended) | Universal curette (both edges cut) | Number pair, standard vs rigid vs extended shank |
| Periodontal file | Series of small parallel cutting surfaces on a head | Hirschfeld 3/7, 5/11, Sugarman 1/2 | Bone file (different working-end geometry, surgical use) | Head form, figure, shank angle |
| Periodontal knife | Broad, narrow, or curved blade for soft tissue | Kirkland 15/16, Orban 1/2, Buck, Crane-Kaplan CK-3 | Scalpel handle + blade (different mechanism) | Named pattern, side or paired configuration |
| Extraction forceps | Two hinged handles, tooth-specific beaks | Upper: #1, #150, 18R/18L, 210S. Lower: #151, #74, #16, cowhorn, 222 | Root tip forceps (finer beaks); tissue forceps (spring-handle) | Arch, tooth group, side, figure, beak profile |
| Root tip forceps | Fine narrow beaks, extraction-forceps handle style | #300, #301, #303 | Fine root elevator (single working end, not hinged) | Beak size, side, tooth-group hint |
| Straight dental elevator | Single blade, straight shank, extraction handle | Coupland (graduated), Bein, Flohr, London Hospital, #301 | Chisel (different bevel), Cryer (triangular cross-bar blade) | Blade width, tip form, handle |
| Cryer elevator | Triangular cross-bar blade, wheel-and-axle motion | Left #CL, Right #CR (paired) | Straight elevator (straight blade) | Left vs right — always specify side |
| Root tip pick | Very fine, delicate tip on a slim shank | Straight, left, right, West #1-#6, Howard, apical | Endodontic explorer (finer still, no leverage use) | Tip direction, working-end dimensions |
| Periosteal elevator | Wide, blunt-edged blade for tissue reflection | Molt #9, Prichard PR-3, Freer, Woodson, Williger, Allen, Buser | Dental (root) elevator — NOT interchangeable | Pattern, blade width, single or double-ended |
| Scalpel handle | Slim handle with a blade-mounting groove | #3, #4, #5 round, #7, microsurgical/mini | Restorative handle (different fitting) | Handle number, blade-fitting system, straight vs angled |
| Tissue forceps | Spring-handle, fine or toothed tips | Adson 1x2, Adson-Brown, Gerald, DeBakey-style | Cotton pliers (different closure, coarser tip) | Pattern, tip width, tooth count, spring tension |
| Needle holder | Hinged, ratchet-locked, jaws with cross-serration | Mayo-Hegar (6", 7"), Crile-Wood, Castroviejo (spring, microsurgical) | Hemostat (finer, non-locking cross-cut) | Length, tungsten-carbide insert vs plain steel, jaw pattern |
| Surgical scissors | Long shear blades, ring handles | Iris (4.5", fine), Metzenbaum, Mayo, straight or curved | Gum scissors (finer, periodontal use) | Blade length, straight vs curved, blunt vs sharp tip |
| Gum / periodontal scissors | Fine blades, often curved or double-curved | Goldman-Fox, Dean, Quinby, LaGrange, Neumann | Iris scissors (straight, general-purpose) | Pattern, blade profile (straight, curved, double-curved) |
| Bone rongeur | Spring-action heavy jaws that cut bone | Friedman, Blumenthal 30°/45°/90°, Luer, Beyer | Bone file (filing action, not cutting) | Side vs end vs combined cutting, angle, jaw dimensions |
| Bone file | Filing surface on a rigid handle | Miller 12/13, Sugarman | Periodontal file (smaller, periodontal use) | Pattern, head form, overall length |
| Bone curette | Spoon-shaped scoop on a rigid handle | Lucas #85, #86, #87, Molt (surgical) | Universal curette (periodontal, different scale) | Spoon size, side, single or double-ended |
| Retractor | Wide blade or hook to hold soft tissue | Minnesota, Austin, Seldin, Weider, Langenbeck, Farabeuf | Mouth gag (holds jaw open, different mechanism) | Blade width, depth, angle, single vs double-ended |
| Restorative condenser / plugger | Small flat or rounded end for compacting material | Black 1/2, Marquette 0/1, 153, 154, Markley, Tanner | Burnisher (rounded end for smoothing, not compacting) | Both end diameters, serrated vs smooth, shank angle |
| Burnisher | Rounded ball, acorn, football, or beavertail end | 18 ball, 26/27S beavertail, 27/29 football | Condenser (compacting, not smoothing) | End shape, both end dimensions |
| Filling / placement instrument | Flat, paddle, or fine angled placement end | Flat plastic, Woodson, IPC, Dycal applicator, composite placement | Carver (defined cutting edge for shaping) | End form, coating (if requested), width |
| Amalgam carrier | Barrel-and-plunger delivery instrument | Single-barrel, double-barrel | Composite placement instrument (different mechanism) | Single vs double barrel, non-stick treatment |
| Endodontic hand file (K/H) | Twisted or fluted rod on colored handle | K-file, Hedstrom (H) file, sizes #06-#80, 21/25/31 mm | K-reamer (twisted, different flute count) | File family, size, length, taper (.02 traditional) |
| Endodontic reamer | Twisted rod on colored handle, fewer flutes than K-file | K-reamer, sizes and lengths as K-files | K-file (more flutes, different action) | Reamer vs file — do not merge |
| Endodontic spreader / plugger | Tapered smooth point on colored handle | Finger spreader #25, hand spreader, plugger | K-file (has flutes) | Spreader vs plugger, taper, length |
| Rubber dam instrument | Clamp forceps, punch, frame, or clamp | Ainsworth punch, Ivory frame, clamp forceps, W8A/W14A clamps | General extraction forceps (much larger) | Component (forceps / punch / frame / clamp), clamp figure |
| Orthodontic plier | Hinged instrument with specialised jaws for wires | Weingart, distal-end cutter, bird-beak, band-pusher | Restorative pliers (different jaw geometry) | Named pattern, cutter capacity, jaw form |
| Impression tray | Rigid perforated or rim-lock tray | Upper, lower, dentate, edentulous, perforated, rim-lock | Sterilization tray (open, no arch form) | Arch, dentition (dentate/edentulous), size, retention type |
| Dental syringe (reusable) | Aspirating handle for anesthetic cartridge | Aspirating, self-aspirating, irrigation | Disposable oral-dosing syringe (different) | Mechanism, cartridge capacity, hub thread (EU/AM) |
| Articulator | Frame holding upper/lower model in relation | Simple hinge, mean-value, magnetic, semi-adjustable | Dental model surveyor (different function) | Articulator type, mounting system, condylar settings |
| Crown remover | Handle with hook, spring impact, or sliding hammer | Manual hook, spring, sliding hammer, spreader, bridge set | Extraction forceps (different mechanism) | Mechanical format, hook/tip set, replacement parts |
What Can Be Confirmed Before You Order
We hold ISO 9001:2015 quality management certification. Request the certificate and its covered organization, site, scope and validity details before ordering. This management-system certification is not a blanket product or destination-market approval.
Sialkot production workflow
Material selection, forming, heat treatment where required, grinding, finishing, inspection, marking, and export packing.
Material02Grade confirmed by SKU
Material and applicable steel grade are confirmed against the quoted pattern instead of applying one grade to every instrument family.
MOQ03Order-type minimums
Samples: 1-3 pieces per pattern; standard product orders: confirmed with your quote; mixed wholesale: 25 instruments (mixed patterns); OEM: 25 pieces per pattern.
Packaging04Protective and branded options
Individual pouches, procedure sets, cassettes, protective bulk cartons, product labels, and approved private-label packaging.
Export05Documented dispatch
Commercial invoice, packing list, protective outer packaging, and courier or freight tracking appropriate to the order.
Checking an Instrument Against Its Original Maker
Sometimes you need to know whether an instrument came from the maker named on it, for example before reordering or after receiving stock through another channel. Collect the evidence first, then let the original maker answer.
- The seller's name and where the instrument was bought.
- The invoice or delivery record.
- The complete part or catalogue reference, as printed on the pack and on the instrument.
- Clear photographs of every mark, the label and the packaging.
Send that record to the maker named on the instrument or its authorised distributor. Ask whether the reference and marking are consistent with its products. A difference in font, spacing or mark position cannot settle the question on its own, in either direction. Until the maker or distributor replies, record the question as unresolved, and do not describe an instrument as counterfeit without that confirmation.
We can help identify the pattern from photographs and quote the same pattern from our range. We cannot verify another manufacturer's products.
Dental Instrument Identification Chart FAQ
Which photographs are most useful for identifying an unlabeled dental instrument?
Send the complete instrument, a close view of each working end, a side view of the shank and any readable maker or reference marking, and add a scale when dimensions matter. Models are told apart by end width, curvature, shank and end pairing, so a handle-only photograph leaves out the identifying features.
Can a rounded tip alone tell me that an instrument is blunt?
No. Some rounded periosteal ends have a sharp periphery, while others are noncutting. Compare the exact reference and the edge description; a rounded outline does not show that the edge is blunt.
Can a handle color or a stamped pattern name confirm the manufacturer?
No. Treat them as clues. A maker may use handle colors within its own range, and different makers use familiar pattern names, so match the maker mark, the complete reference and the documented configuration together. A color or an eponym alone does not establish brand authenticity or where the instrument came from.
What should an identification record say if the exact pattern is still uncertain?
Record the confirmed family separately from the unresolved details. For example, double-ended measuring probe can describe an observed configuration while the scale or complete reference remains unknown. Keep the photographs and candidate references with that uncertainty instead of assigning a definitive SKU from a partial visual match.
Can an instrument photograph establish its alloy, reusable status or sterile condition?
No. A photograph documents visible features and markings; alloy, reusable status and sterile condition need product-specific evidence, such as listings that show reusable and nonsterile as separate fields. Keep the product label and instructions with the identification record rather than inferring lifecycle or supplied condition from appearance.
Does a different font or marking layout mean an instrument is not genuine?
Not on its own. A difference in font or layout is a reason to ask, not a conclusion either way. Collect the seller details, invoice, complete reference and clear photographs of the marks and packaging. Then ask the named maker or its authorised distributor whether they are consistent with its products. If you receive no reply, treat the question as unresolved.
