Dental Impression Tray Sizes and Retention Guide

The Core Impression Tray Taxonomy

Begin by separating stock trays from custom trays. A stock tray is supplied in predetermined shapes and sizes. A custom tray is fabricated for an individual case from a model or digital design and belongs to a different workflow. Within stock trays, the principal distinctions are dentate versus edentulous, upper versus lower, full arch versus partial or quadrant, and open-bite versus closed-bite or dual-arch designs.

Each of these distinctions changes which tray you receive, so state them on the order rather than leaving them to a generic description. A buyer looking for a replacement also needs the original reference and dimensions because the label “medium upper” can vary among product systems.

Dentate vs Edentulous Tray Forms

Dentate trays provide space around natural teeth and support impression material around the crowns and arch. Edentulous trays follow the residual ridge and vestibular form for patients without teeth. The difference is anatomical, not merely a smaller or larger size. A dentate tray should not be relabelled as edentulous because its dimensions seem similar in a photograph.

Official GC tray literature separates dentulous, edentulous, and closed-bite families and offers multiple shapes within those groups. For purchasing, that structure means arch and dentition come first, followed by size, retention, material, and reference. A width or an S/M/L label alone cannot tell you whether a tray is upper or lower, dentate or edentulous, or full-arch or partial, so match the exact reference and dimensions rather than substituting on appearance.

• GC impression tray family overview

Upper, Lower, Full-Arch, and Partial Coverage

Upper trays include a palatal form, while lower trays accommodate the tongue and floor-of-mouth anatomy. Their overall outline and handle relationship differ. Full-arch trays cover the arch; partial or quadrant trays cover a smaller region; and closed-bite or dual-arch trays are designed around a different impression workflow. Those names should remain attached to the exact reference instead of being reduced to dimensions only.

For procurement, state the coverage and arch before the size: “upper dentate full-arch, perforated, medium, reference X” is much clearer than “medium tray.” Schools and multi-operatory practices should keep a tray map showing reference, arch, dentition, coverage, dimensions, and quantity in each set. That map supports replenishment when a single tray is lost or damaged.

As a worked example, the ten-piece perforated set we list holds three upper full-arch trays with palatal coverage and three lower full-arch trays that are open in the center, each in three sizes, plus two anterior trays for front segments and two sectional trays, a mirrored pair with long handles, for side segments. Its three sizes are the set's own labels.

Perforated, Solid, and Rim-Lock Retention

Perforated trays provide openings through which material can engage mechanically. Solid trays do not use those openings. Rim-lock trays add a raised border or lip intended to help retain material and influence pressure within the tray. A tray can combine features, so “perforated” and “rim-lock” are not always mutually exclusive. The exact product system and material instructions determine how retention should be managed.

GC’s official guidance explains that different material systems may call for different retention features and that tray adhesive is still part of the product workflow. The safe purchasing conclusion is not a universal material prescription; it is to document perforated or solid construction, rim-lock presence, and the approved adhesive or material instructions. The clinician and material manufacturer remain the authority for the actual impression technique.

• GC tray retention and selection manual

Read image details

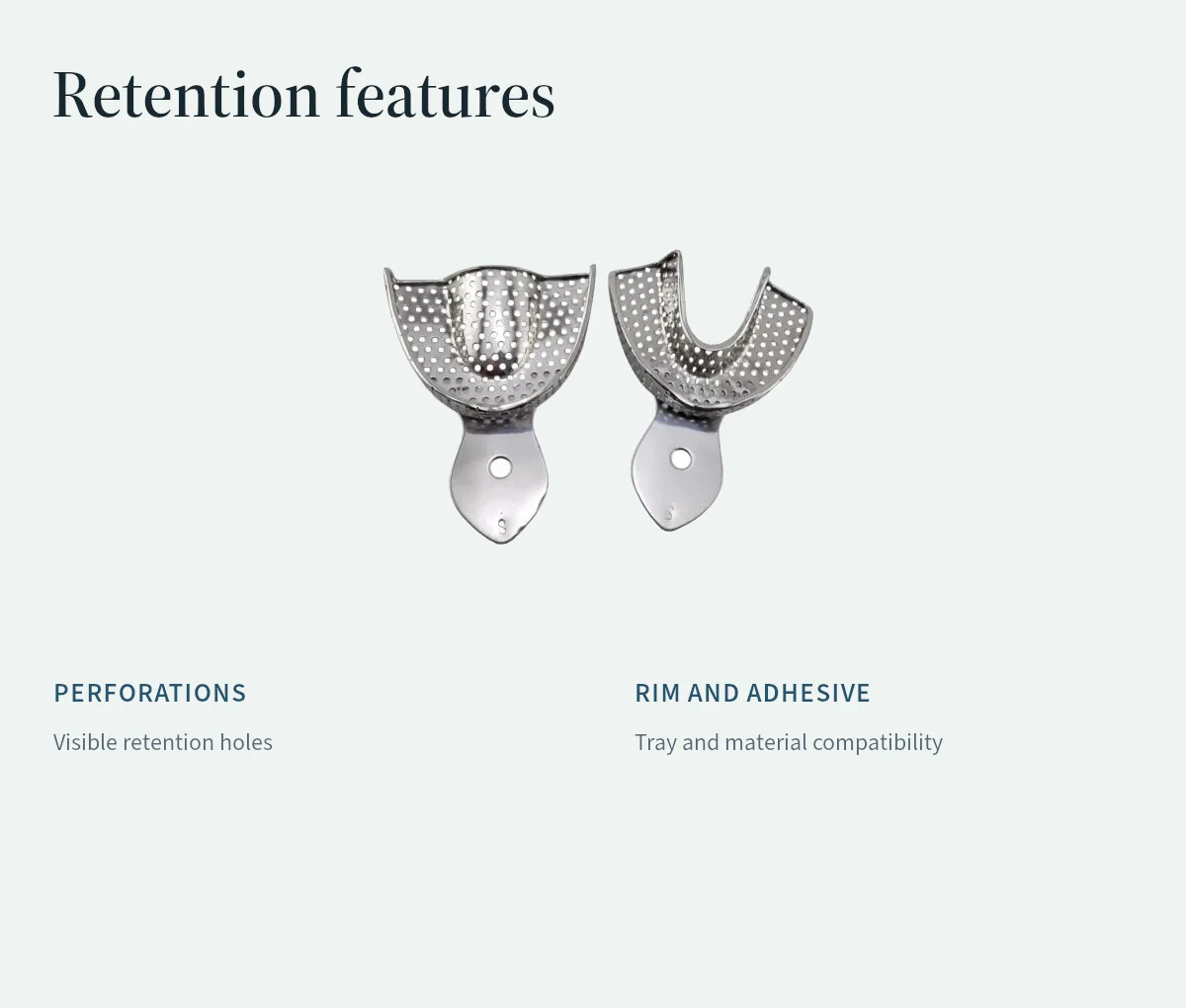

Image description

Perforated impression trays illustrate visible retention features, with rim and adhesive checks kept separate.

Image text

Retention features PERFORATIONS RIM AND ADHESIVE Visible retention holes Tray and material compatibility

Why Size Names Need Dimensions or References

Small, medium, large, and extra-large are convenient labels, but they are not a universal dimensional standard across every manufacturer. One system may use numbered references, another may use measured widths, and another may separate pedodontic, regular, extra-long, or depressed-anterior forms. The most reliable repeat-order field is the catalogue reference, supported by dimensions and the anatomy label.

A tray-size chart should therefore be treated as a supplier-specific lookup, not a clinical sizing rule. Measure and record the dimensions stated for the tray, such as internal width, overall length, depth, and handle orientation, and keep the measurement method consistent. When matching an existing tray, provide the reference or a clearly photographed and measured sample rather than translating it into a generic size word.

Read image details

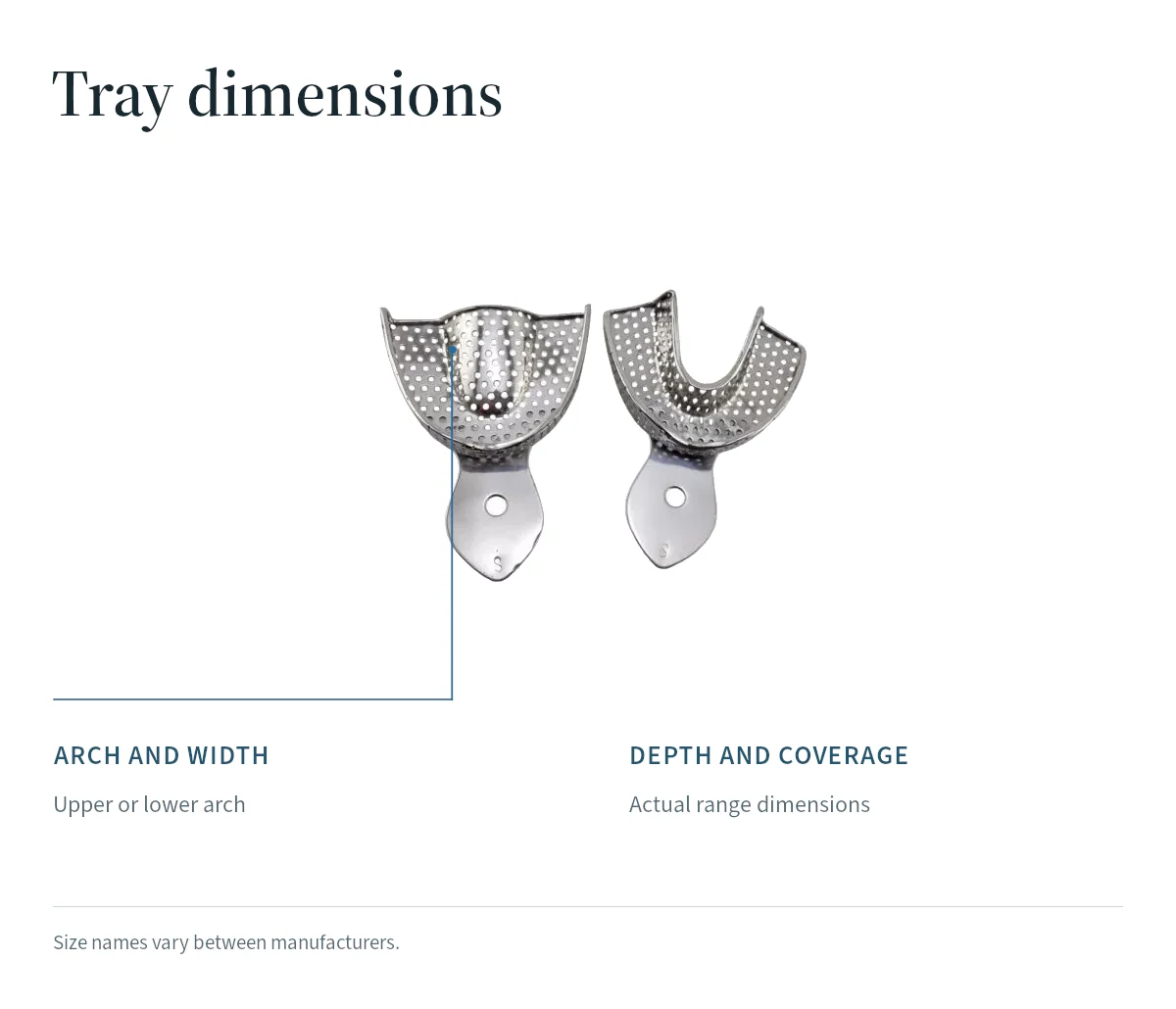

Image description

An upper and lower tray photograph accompanies checks for arch, width, depth and coverage.

Image text

Tray dimensions ARCH AND WIDTH DEPTH AND COVERAGE Upper or lower arch Actual range dimensions Size names vary between manufacturers.

Reusable Metal Tray Material and Rigidity

Reusable metal trays are selected partly for rigidity and dimensional stability. Official product ranges include stainless steel, coated metal, aluminium, nickel-plated, and other constructions, each with product-specific handling and reprocessing instructions. The material of the quoted tray is confirmed in the quotation; no single alloy is assumed for every tray in the market.

Inspection should cover wall rigidity, distortion, sharp or rough edges, welds or rim-lock attachment, handle security, perforation finish, surface condition, and a stable form. A bent tray should not be accepted merely because it still fits inside the storage set. Repeat batches should be checked against the approved dimensions and sample, especially when trays are private labelled or supplied as graduated sets.

Cleaning, Inspection, and Set Management

Impression material residue can remain around perforations, rims, welds, and handle junctions. Reusable trays should be contained, cleaned, inspected, packaged where required, and reprocessed according to their instructions and the healthcare facility protocol. The process must also follow the impression-material and adhesive instructions. This guide does not set a cycle or chemical concentration.

Manage reusable trays as a documented set. Assign each reference a storage position, record how many are in circulation, and define a replacement trigger for distortion, damaged retention features, rough edges, failed welds, or surface deterioration. A simple set map reduces the tendency to reorder an assorted box that does not match the practice’s actual usage.

• Read the instrument sterilization guide

Writing a Complete Impression Tray Quote

For each line, state dentate or edentulous, upper or lower, full arch or partial, open or closed bite, perforated or solid, rim-lock or other retention feature, material, size or dimensions, reference, quantity, finish, marking, packaging, and destination. If the buyer wants a graduated set, list the exact references and quantity per reference. Do not use “assorted” as a substitute for a defined set composition. If you need a dentate or edentulous form, or a particular retention design, say so and we confirm what can be supplied.

Verified commercial options include small evaluation quantities, quote-confirmed catalog minimums, mixed wholesale orders, OEM marking, branded packaging, and export documentation. Trays can be packed individually, as matched sets, in protective bulk cartons, or in approved branded packaging. Export orders include commercial and packing documentation and tracked dispatch. Available certification and quality documentation can accompany the quotation.
