Orthodontic wire cutting and bending instruments trim, cut, and shape archwires, ligatures, and auxiliaries, and the right choice depends on wire size, alloy, and clinical task. Cutters are matched to wire thickness, while forming pliers are matched to the bend or loop being made. This guide covers the main cutting and bending instruments, how wire material changes the tool you need, and a safe chairside workflow. For the full plier lineup, see our essential orthodontic pliers guide.
Why wire material changes the instrument you need
Archwire material is the first thing that decides which instrument to reach for, because stainless steel, nickel-titanium (NiTi), and beta-titanium behave very differently. Stainless steel is stiff, strong, and holds bends well, making it suitable for finishing bends, loops, and working wires. NiTi is superelastic and springs back, so it resists permanent bends unless a NiTi-specific tool is used. Beta-titanium sits in between, offering both formability and flexibility. The practical rule: match the cutter or plier to the wire's diameter and alloy, and never use a ligature cutter on heavy rectangular archwire.
Orthodontic wire cutting instruments
Cutting instruments differ by the wire they are rated to cut and where the cut is made. Choosing by rated capacity protects both the instrument edge and the patient.
- Distal end cutters trim the archwire behind the buccal tube; "cut-and-hold" designs grip the clipped segment so it does not fall into the mouth.
- Hard wire cutters are built for thicker, stiffer wires such as stainless steel working wires, facebow, and appliance wires.
- Pin and ligature cutters are fine instruments for soft ligature wire, elastomeric remnants, pins, and light auxiliaries only.
- Flush cutters create a closer cut with less protruding wire for patient comfort, within their rated wire size.
Read image details
- Image description

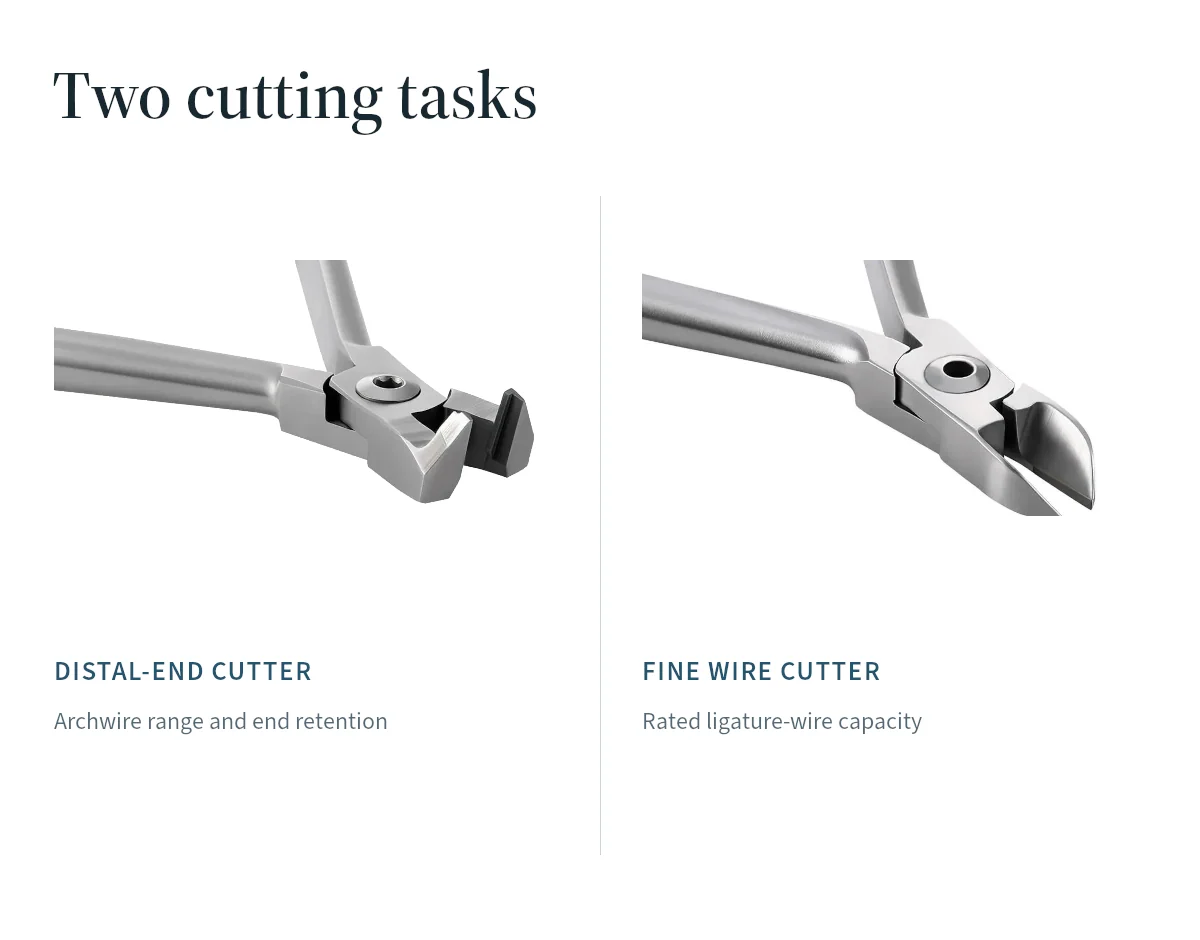

- Two orthodontic cutter heads compared by cutting-surface and access features.
- Image text
- Two cutting tasks DISTAL-END CUTTER FINE WIRE CUTTER Archwire range and end retention Rated ligature-wire capacity
Orthodontic wire bending and forming instruments
Bending and forming pliers shape wire into functional features, from simple bends to precise loops and torque. Each is matched to wire type and the geometry being formed.
- Bird beak pliers (one round, one tapered beak) form loops, hooks, stops, and controlled bends in round wire.
- Three-jaw (three-prong) pliers contour and bend wire in broad curves without a sharp kink; NiTi versions are designed for forming NiTi archwires.
- Loop-forming pliers (omega, Tweed, Nance, Jarabak) create consistent omega, bull, closing, and T-loops for space-closure mechanics.
- Arch-bending pliers place first-, second-, and third-order bends that control in-out, tip, and torque.
- V-stop and step pliers create V-bends and offset steps to control wire travel and bypass brackets.
- Torquing pliers adjust torque in rectangular wire to influence root position and crown inclination during finishing.
Utility pliers (Weingart, How, Mathieu) place and stabilize the wire during these steps.
Wire instrument selection reference
| Task | Instrument |
|---|---|
| Trim distal archwire ends | Distal end cutters (cut-and-hold) |
| Cut heavy stainless steel wire | Hard wire cutters |
| Cut soft ligature wire / pins | Pin & ligature cutters |
| Loops, hooks, round-wire bends | Bird beak pliers |
| Broad contouring (incl. NiTi) | Three-jaw pliers |
| Omega / closing loops | Loop-forming pliers |
| First/second/third-order bends | Arch-bending pliers |
| Stops & wire-travel control | V-stop / step pliers |
| Rectangular-wire torque | Torquing pliers |
Browse orthodontic instruments.
A safe wire cutting and bending workflow
- Identify the wire alloy (NiTi, stainless steel, beta-titanium) and confirm its size against the instrument's rated capacity.
- Select the correct cutter or forming plier for that wire and task; do not use delicate cutters on hard wire.
- Stabilize the wire with a utility plier before cutting or bending.
- When cutting intraorally near molar tubes, use a cut-and-hold cutter to control the segment.
- Make the bend deliberately and avoid repeated bending in one spot, which fatigues the wire.
- Check for sharp distal ends or ligature tails, verify the appliance function, then inspect and reprocess the instrument.
Read image details
- Image description

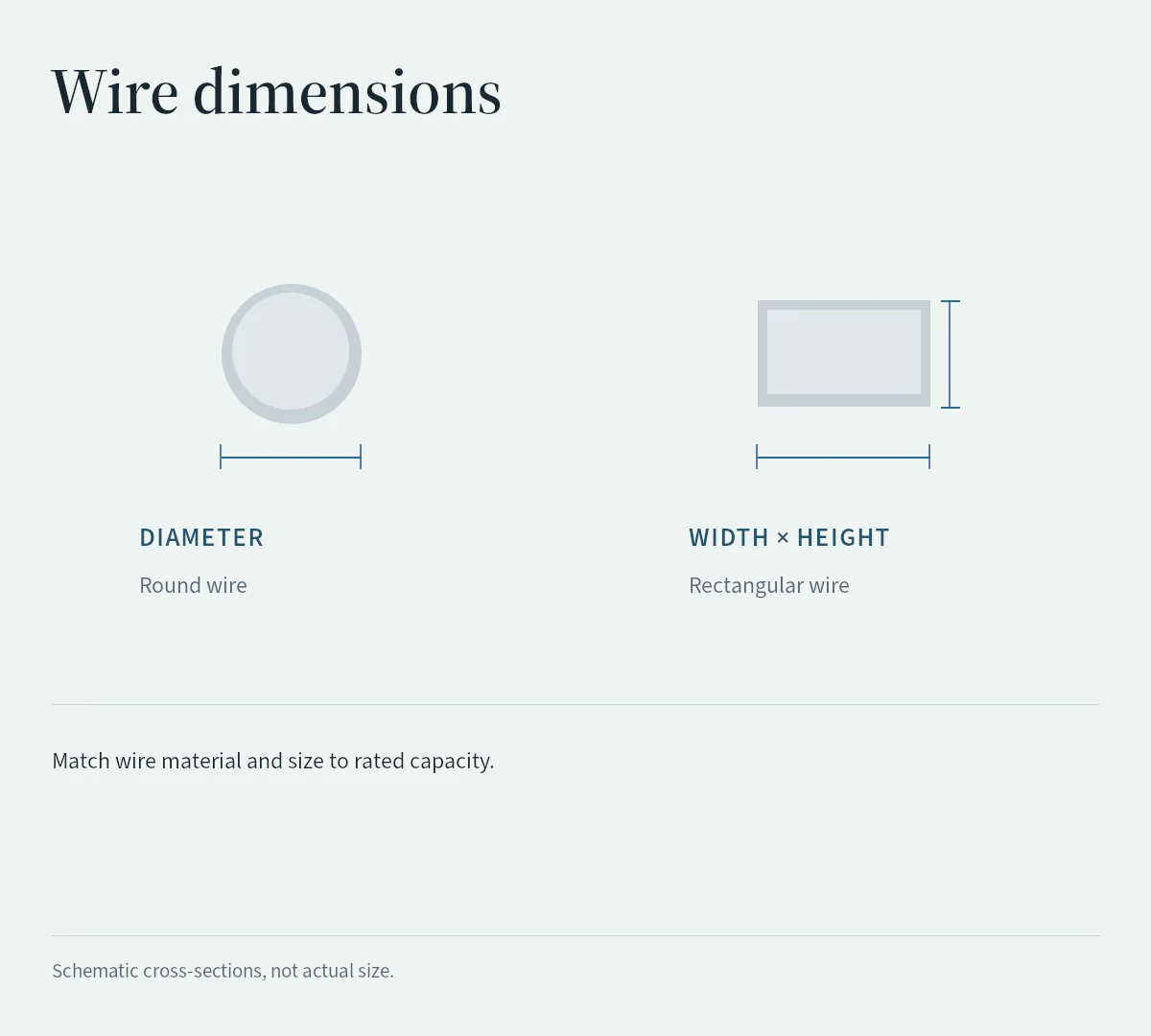

- Round and rectangular wire cross-sections distinguish diameter from width and height when checking cutter capacity.
- Image text
- Wire dimensions DIAMETER WIDTH × HEIGHT Round wire Rectangular wire Match wire material and size to rated capacity. Schematic cross-sections, not actual size.
Common mistakes to avoid
- Using ligature cutters on hard wire — the fastest way to ruin a fine cutting edge.
- Overbending NiTi — it springs back or fatigues unless a NiTi-specific tool is used.
- Cutting without holding the segment — a clipped distal end can drop into the mouth; use cut-and-hold cutters.
- Reusing damaged pliers — bent beaks and dull blades reduce control and create rough wire ends.
Frequently asked questions
What tool is used to cut orthodontic wire?
Orthodontic wire is cut with distal end cutters, hard wire cutters, or pin and ligature cutters, chosen by wire size, hardness, and whether the cut is intraoral or extraoral.
Can you bend nickel-titanium orthodontic wire?
NiTi can be adjusted only with appropriate technique and NiTi-specific instruments. Because it is superelastic and springs back, it does not hold bends like stainless steel.
What is the difference between distal end cutters and ligature cutters?
Distal end cutters trim archwire ends behind the molar tubes and often hold the cut piece, while ligature cutters are finer instruments for soft ligature wire, pins, and auxiliaries.
