Endodontic Spreaders and Pluggers: Selection Guide

Endodontic spreaders and pluggers are small instruments with an outsized impact on root canal obturation. A spreader creates lateral space beside a master cone so accessory cones can be added, while a plugger compacts filling material vertically. They are not interchangeable, and choosing correctly by obturation technique, canal shape, taper, and curvature is what produces a dense, void-free seal. This guide explains the difference and how to select each.

What are endodontic spreaders and pluggers?

An endodontic spreader is a smooth, pointed, slightly tapered instrument used to compact filling material laterally, creating space beside the master gutta-percha cone for accessory cones — the core of lateral compaction. Its job is controlled lateral pressure that moves gutta-percha aside without gouging canal walls or forcing material past the apex. An endodontic plugger is a smooth, flat-ended, slightly tapered instrument used to compact material vertically, central to warm vertical compaction, continuous-wave obturation, apical plug placement, and coronal backfill. Rather than creating lateral space, it drives softened or placed material apically and vertically.

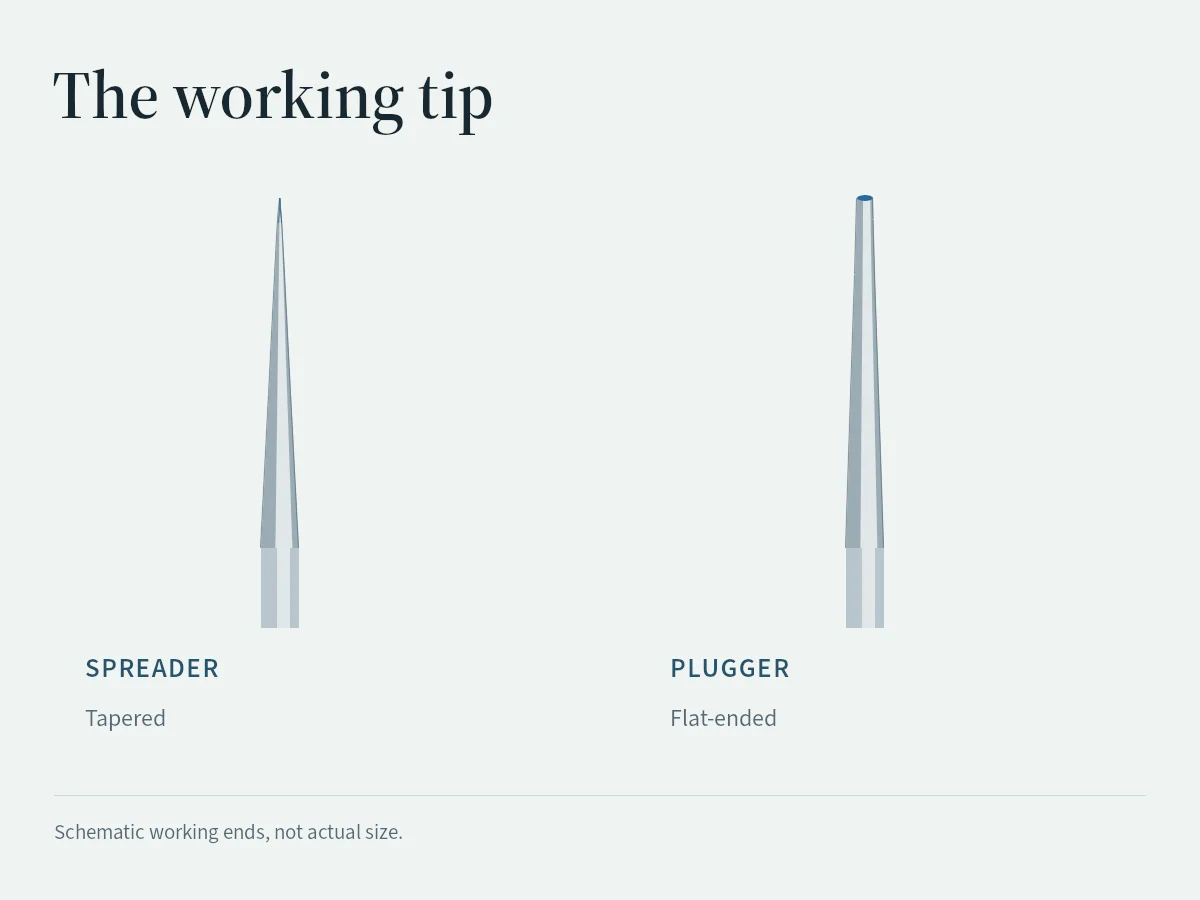

Spreader vs plugger: the clinical difference

Aspect	Spreader	Plugger
Tip shape	Pointed, tapered	Flat-ended, tapered
Compaction direction	Lateral (creates space)	Vertical (compacts material)
Main technique	Cold lateral compaction	Warm vertical / continuous wave
Role	Makes room for accessory cones	Drives softened gutta-percha apically

In lateral compaction, sealer is placed, a fitted master cone is seated, and a tapering spreader is inserted alongside it to compact it apically and laterally; the space is then filled with accessory points. In warm vertical compaction, a fitted master cone is heat-softened and compacted vertically with a plugger. In both, instrument fit is critical: an oversized spreader will not penetrate deeply enough, and a binding plugger transfers force to dentin instead of gutta-percha.

Types of endodontic spreaders

• Finger spreaders: controlled with fingertip pressure for tactile feedback in narrow or curved canals; the usual choice for cold lateral compaction.
• Hand spreaders: larger handles that generate more lateral force, best reserved for larger, straighter canals that accept them passively.
• NiTi spreaders: flex more readily to follow curved canals and reach depth without transporting the mass, though they exert less wedging force than stiff stainless steel.

Types of endodontic pluggers

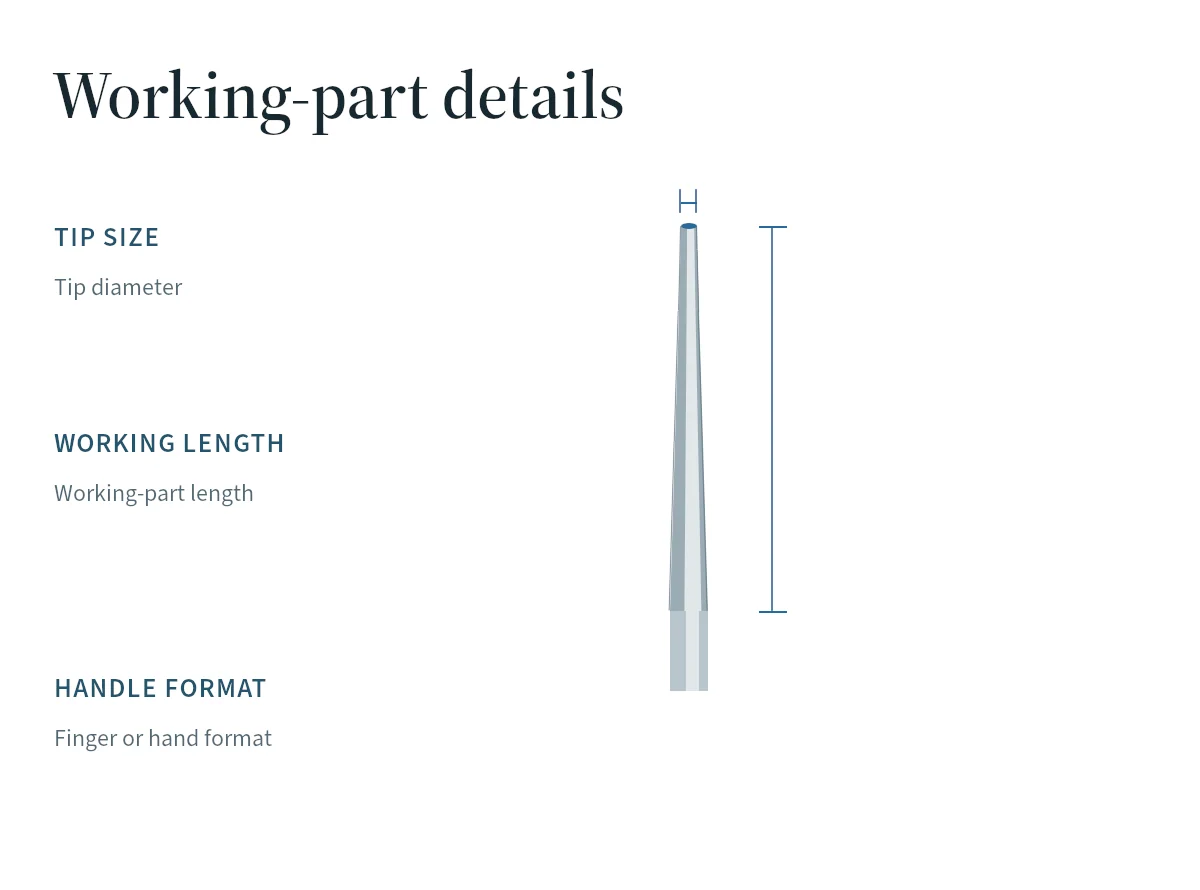

• Hand pluggers: multiple diameters and tapers for vertical compaction of gutta-percha, apical barriers, and coronal compaction; should approach depth without binding.
• Heat pluggers: electrically heated tips that soften and drive gutta-percha in warm vertical and continuous-wave techniques; verify fit before obturation.
• MTA and bioceramic pluggers: used to place and adapt calcium-silicate materials or apical plugs in open-apex cases, where micro-pluggers help in limited access.

How to select the right spreader or plugger

Selection starts with the obturation technique, then canal fit. For cold lateral compaction, choose the spreader first; for warm vertical compaction, plugger fit is the priority; for single-cone hydraulic condensation, a plugger may only adapt gutta-percha near the orifice. Match the instrument to the prepared taper rather than forcing the canal to accept it, and verify depth before adding sealer: for lateral compaction, a finger spreader is inserted alongside the master cone to a marked length; for vertical compaction, pluggers are checked for fit within about 5–7 mm of the apical constriction. In curved canals, favor flexible instruments, smaller tapers, and gentler forces, and match accessory cones to the spreader-created space, since cones larger than the spreader taper can create voids. Above all, compact with measured pressure — a spreader or plugger should adapt material, not wedge against dentin, which raises vertical root fracture risk.

Obturation selection workflow

1. Confirm working length with the final file, apex locator, and radiograph.
2. Evaluate canal anatomy: curvature, oval shape, open apex, and taper.
3. Select the obturation technique (lateral, warm vertical, continuous wave, single-cone).
4. Fit the master cone, then trial-fit the spreader or plugger before sealer placement and mark its depth.
5. Choose accessory cones matched to the spreader space, compact with controlled pressure, and assess the fill radiographically for length, density, and voids.

Endodontic compactors are standardized under ISO 3630-3, but a standardized size does not guarantee a fit for a given canal — anatomy decides. Browse endodontic instruments, and see our companion guide on K-files vs H-files.

Care and sterilization

Inspect spreaders and pluggers before use for corrosion, bending, or residue, since a damaged spreader drags gutta-percha and a worn heat plugger transfers heat unevenly. Reusable instruments must be cleaned and heat-sterilized per manufacturer instructions and CDC infection-control guidance. See our dental instrument sterilization guide.

Frequently asked questions

What is the difference between an endodontic spreader and a plugger?

A spreader is pointed and tapered and compacts material laterally to create space for accessory cones; a plugger is flat-ended and tapered and compacts filling material vertically inside the canal.

Which spreader is best for lateral compaction?

A finger spreader that fits alongside the master cone to the intended depth without binding is preferred. NiTi spreaders suit curved canals; stainless steel offers more stiffness in straighter canals.

How deep should a plugger fit for warm vertical compaction?

Guidance describes checking hand and heated pluggers for fit within about 5 to 7 mm of the apical constriction before obturation.
